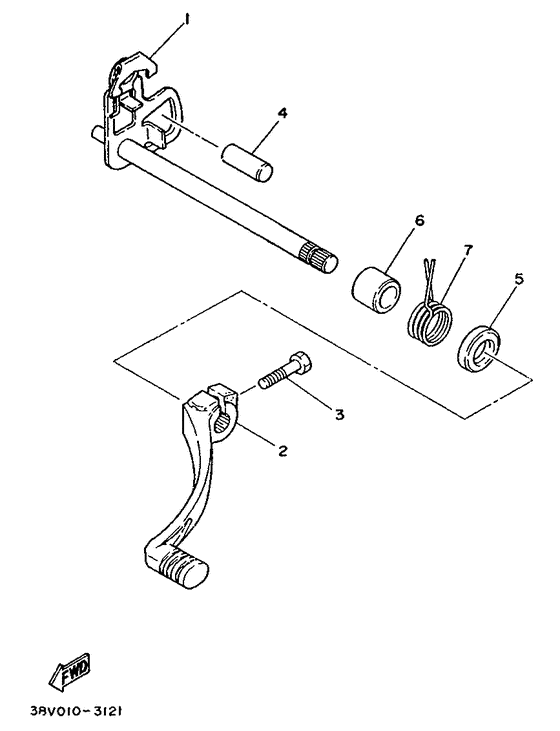

Shift shaft Diagram Yamaha TY250
- Year
- 1991
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4AJ2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
38V-18101-02-00
Shift Shaft Assembly
|
38V-18101-02-00 |
— | ||
|
02
|
02
59N-18110-00-00
Change Pedal Assembly
|
59N-18110-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
03
|
03
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
04
|
04
93608-25150-00
Pin, Dowel
|
93608-25150-00 |
— | ||
|
05
|
05
93102-12106-00 Oil Seal (Sd 12-22-5 Hs) |
93102-12106-00 |
from US $3.72 |
||
| replacement | |||||
|
05
|
05
931-02123-21-00 Oil Seal |
931-02123-21-00 |
from US $5.41 |
||
|
06
|
06
90560-12171-00
Spacer
|
90560-12171-00 |
— | ||
|
07
|
07
90508-29361-00
Spring, Torsion
|
90508-29361-00 |
— | ||
