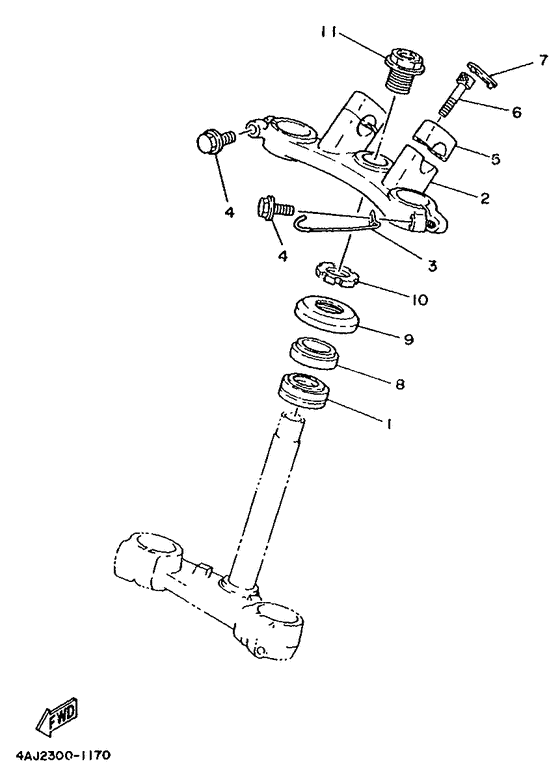

Steering Diagram Yamaha TY250
- Year
- 1991
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4AJ2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
93332-00059-00 Bearing |
93332-00059-00 |
from US $43.24 |
||
| replacement | |||||
|
01
|
01
93332-00079-00 Bearing |
93332-00079-00 |
from US $42.67 |
||
|
02
|
02
38V-23435-00-39
Crown, Handle
Clear |
38V-23435-00-39 |
— | ||
|
03
|
03
4AJ-23389-00-00
Guide, Cable
|
4AJ-23389-00-00 |
— | ||
|
04
|
04
95021-08040-00 Bolt, Flange (Small Head) |
95021-08040-00 |
from US $1.42 |
||
| replacement | |||||
|
04
|
04
95024-08040-00 Bolt, Flange |
95024-08040-00 |
from US $1.52 |
||
|
05
|
05
4H7-23441-00-38 Holder, Handle UpperClear (with buff) |
4H7-23441-00-38 |
from US $26.64 |
||
| replacement | |||||
|
05
|
05
4H7-23441-01-38 Holder, Handle UpperClear (with buff) |
4H7-23441-01-38 |
from US $26.64 |
||
|
06
|
06
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
06
|
06
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
07
|
07
5K5-23469-00-00 Cap, Bolt |
5K5-23469-00-00 |
US $22.59 |
||
|
08
|
08
93332-00023-00 Bearing |
93332-00023-00 |
from US $22.53 |
||
| replacement | |||||
|
08
|
08
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.62 |
||
|
09
|
09
1W1-23416-00-00 Cover, Ball Race 2 |
1W1-23416-00-00 |
from US $15.02 |
||
|
10
|
10
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
10
|
10
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
10
|
10
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
11
|
11
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
