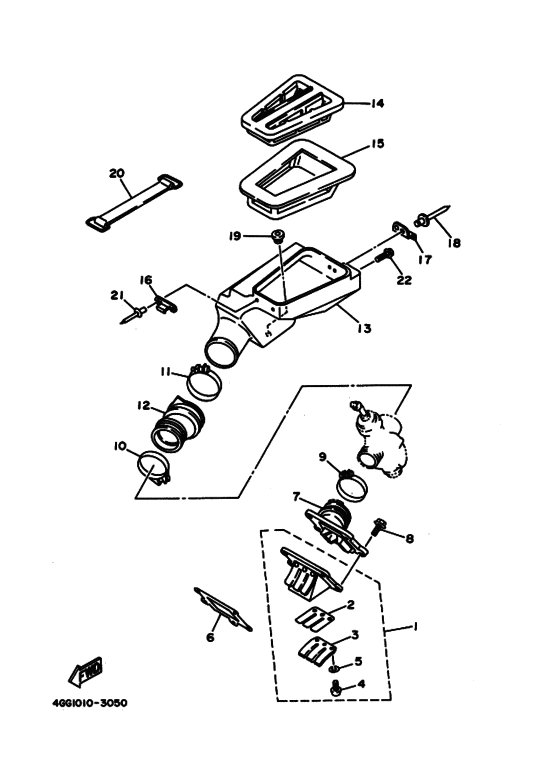

Intake Diagram Yamaha TY250
- Year
- 1993
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4GG2
- Sales region
- Europe (999)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4GG-13610-00-00
Reed Valve Assy
|
4GG-13610-00-00 |
— | ||
|
2
|
2
4GG-13613-00-00
Reed, Valve
|
4GG-13613-00-00 |
— | ||
|
3
|
3
4GG-13616-00-00
Stopper, Reed Valve
|
4GG-13616-00-00 |
— | ||
|
4
|
4
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
4GG-13621-00-00 Gasket, Valve Seat |
4GG-13621-00-00 |
US $6.09 |
||
|
7
|
7
4GG-13565-00-00 Joint, Carburetor |
4GG-13565-00-00 |
US $156.33 |
||
|
8
|
8
95023-06020-00 Bolt, Flg.(Small Head) |
95023-06020-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
95024-06020-00 Bolt, Flange (Small Head) |
95024-06020-00 |
from US $1.66 |
||
|
9
|
9
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
9
|
9
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
10
|
10
90460-49058-00 Clamp, Hose |
90460-49058-00 |
from US $3.72 |
||
|
11
|
11
90460-58015-00 Hose Clamp Assy |
90460-58015-00 |
from US $4.53 |
||
| replacement | |||||
|
11
|
11
90450-58002-00 Hose Clamp Assy |
90450-58002-00 |
from US $4.53 |
||
|
12
|
12
39K-14453-00-00 Joint, Air Cleaner 1 |
39K-14453-00-00 |
from US $30.02 |
||
|
13
|
13
4GG-14411-00-00
Case, Air Cleaner 1
|
4GG-14411-00-00 |
— | ||
|
14
|
14
38V-14412-00-00
Cap, Clean Case 1
|
38V-14412-00-00 |
— | ||
|
15
|
15
38V-14451-00-00 Element, Air Cleanr |
38V-14451-00-00 |
from US $25.33 |
||
| replacement | |||||
|
15
|
15
38V-14451-01-00 |
38V-14451-01-00 |
US $24.26 |
||
|
16
|
16
4GG-14493-00-00
Stay 1
|
4GG-14493-00-00 |
— | ||
|
17
|
17
26A-14436-00-00 Hook |
26A-14436-00-00 |
US $6.75 |
||
|
18
|
18
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.54 |
||
|
19
|
19
90480-09211-00
Grommet
|
90480-09211-00 |
— | ||
|
20
|
20
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $14.29 |
||
|
21
|
21
90267-40043-00
Rivet, Blind 46Y
|
90267-40043-00 |
— | ||
| replacement | |||||
|
21
|
21
902-67400-80-00
Rivet, Blind (5H0)
|
902-67400-80-00 |
— | ||
|
22
|
22
95023-06012-00 Bolt, Flange (Small Head) |
95023-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
22
|
22
95024-06012-00 Bolt, Flange (Small Head) |
95024-06012-00 |
from US $1.56 |
||
