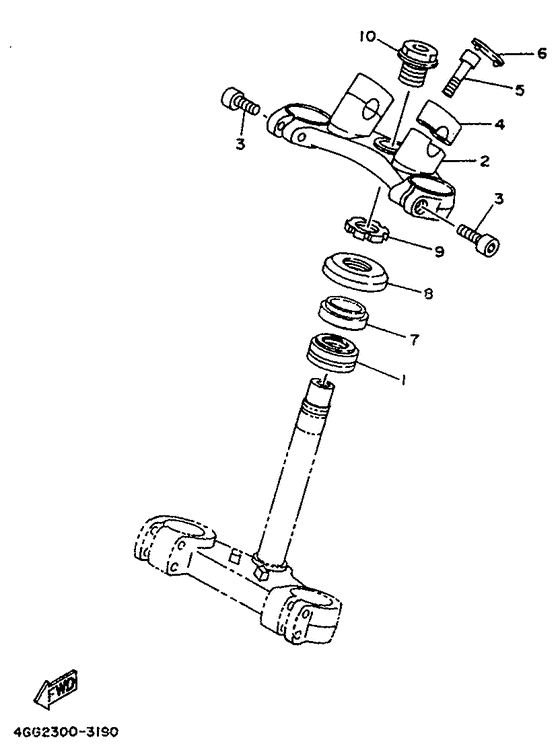

Steering Diagram Yamaha TY250
- Year
- 1993
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4GG2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
93332-00079-00 Bearing |
93332-00079-00 |
from US $42.67 |
||
|
02
|
02
4GG-23435-01-00
Crown, Handle
|
4GG-23435-01-00 |
— | ||
|
03
|
03
91311-08030-00 Bolt, Hexagon Socket Head |
91311-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
03
|
03
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.18 |
||
|
04
|
04
4H7-23441-00-38 Holder, Handle UpperClear (with buff) |
4H7-23441-00-38 |
from US $26.64 |
||
| replacement | |||||
|
04
|
04
4H7-23441-01-38 Holder, Handle UpperClear (with buff) |
4H7-23441-01-38 |
from US $26.64 |
||
|
05
|
05
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
05
|
05
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
06
|
06
5K5-23469-00-00 Cap, Bolt |
5K5-23469-00-00 |
US $22.59 |
||
|
07
|
07
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.62 |
||
|
08
|
08
3XV-23416-00-00 Cover, Ball Race 2 |
3XV-23416-00-00 |
US $27.76 |
||
|
09
|
09
90179-25451-00
Nut
|
90179-25451-00 |
— | ||
|
10
|
10
2KM-23451-00-00 Bolt, Fitting 1 |
2KM-23451-00-00 |
from US $9.63 |
||
| replacement | |||||
|
10
|
10
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
