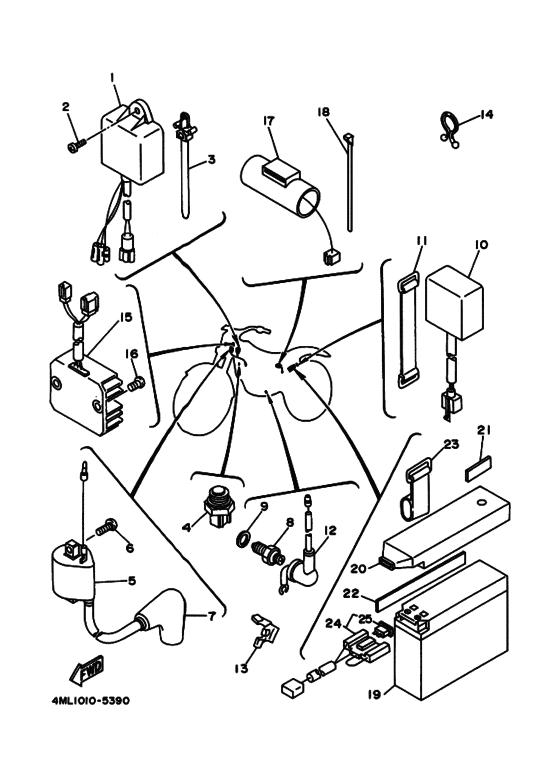

Electrical 1 Diagram Yamaha TY250 SCOTTISH
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4ML1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4ML-85540-00-00
C.d.i. Unit Assy
．．．ＣＤＩユニツトアセンブリ; |
4ML-85540-00-00 |
— | ||
|
2
|
2
98507-06014-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-06014-00 |
from US $1.07 |
||
|
3
|
3
90464-12089-00 Clamp |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
3
|
3
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.39 |
||
|
4
|
4
4GG-82560-00-00
Thermo Switch Assy
サーモスイツチアセンブリ; |
4GG-82560-00-00 |
— | ||
|
5
|
5
4GG-82310-01-00 Ignition Coil Assy |
4GG-82310-01-00 |
US $102.79 |
||
| replacement | |||||
|
5
|
5
4GG-82310-10-00 Ignition Coil Assy |
4GG-82310-10-00 |
US $77.74 |
||
|
6
|
6
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
7
|
7
81E-82370-20-00 Plug Cap Assembly |
81E-82370-20-00 |
from US $28.34 |
||
| replacement | |||||
|
7
|
7
8DG-82370-00-00 Plug Cap Assy |
8DG-82370-00-00 |
from US $28.34 |
||
|
8
|
8
4KM-82540-00-00
Neutral Switch Assy
ニユートラルスイツチアセンブリ; |
4KM-82540-00-00 |
— | ||
| replacement | |||||
|
8
|
8
4GY-82540-10-00 Neutral Switch Assyニユートラルスイツチアセンブリ; |
4GY-82540-10-00 |
from US $26.22 |
||
|
9
|
9
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.66 |
||
|
10
|
10
4ML-85590-00-00
Control Unit Assy
コントロールユニツトアセンブリ; |
4ML-85590-00-00 |
— | ||
|
11
|
11
120-82131-00-00
Band, Battery
|
120-82131-00-00 |
— | ||
| replacement | |||||
|
11
|
11
7H3-82131-00-00 Band, Battery |
7H3-82131-00-00 |
from US $5.06 |
||
|
12
|
12
4ML-82541-00-00
Wire, Lead
ワイヤ，リード; |
4ML-82541-00-00 |
— | ||
|
13
|
13
4ML-82544-00-00
Clamp
|
4ML-82544-00-00 |
— | ||
|
14
|
14
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
15
|
15
3Y6-81960-01-00 Rectifier & Regulator Assyレクチフアイヤアンドレギユレータアセンブリ; |
3Y6-81960-01-00 |
from US $145.07 |
||
|
16
|
16
98507-06014-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-06014-00 |
from US $1.07 |
||
|
17
|
17
3TC-81965-00-00 Condenser, Smoothingコンデンサ; |
3TC-81965-00-00 |
from US $69.22 |
||
|
18
|
18
904-64141-17-00
Clamp
|
904-64141-17-00 |
— | ||
| replacement | |||||
|
18
|
18
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
19
|
19
90793-25007-00
Battery Assy(Gt4B-5 12V-2.5Ah)
．バツテリアセンブリ; ＧＴ４Ｂ−５ １２Ｖ−２５ＡＨ; Ｇ．Ｓ． |
90793-25007-00 |
— | ||
| replacements | |||||
|
19
|
19
GT4-B5000-00-00
Battery
．バツテリアセンブリ; ＧＴ４Ｂ−５ １２Ｖ−２５ＡＨ; Ｇ．Ｓ． |
GT4-B5000-00-00 |
— | ||
|
19
|
19
4JS-82100-00-00
Battery Assy
．バツテリアセンブリ; ＧＴ４Ｂ−５ １２Ｖ−２５ＡＨ; Ｇ．Ｓ． |
4JS-82100-00-00 |
— | ||
|
20
|
20
4ML-82129-00-00
Cover, Battery
カバー，バツテリ; |
4ML-82129-00-00 |
— | ||
|
21
|
21
4GG-21488-00-00
Damper
|
4GG-21488-00-00 |
— | ||
|
22
|
22
53Y-82121-00-00 Pad, Battery |
53Y-82121-00-00 |
US $2.18 |
||
|
23
|
23
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
24
|
24
4ML-82115-00-00
Wire, Plus Lead
ワイヤ，プラスリード; |
4ML-82115-00-00 |
— | ||
|
25
|
25
3YJ-82151-00-00 Fuse (7.5A-Bl)．．フユーズ ; ７５Ａ−ＢＬ |
3YJ-82151-00-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
2KW-82151-00-00 Fuse (7.5A-Bl)．．フユーズ ; ７５Ａ−ＢＬ |
2KW-82151-00-00 |
from US $1.56 |
||
