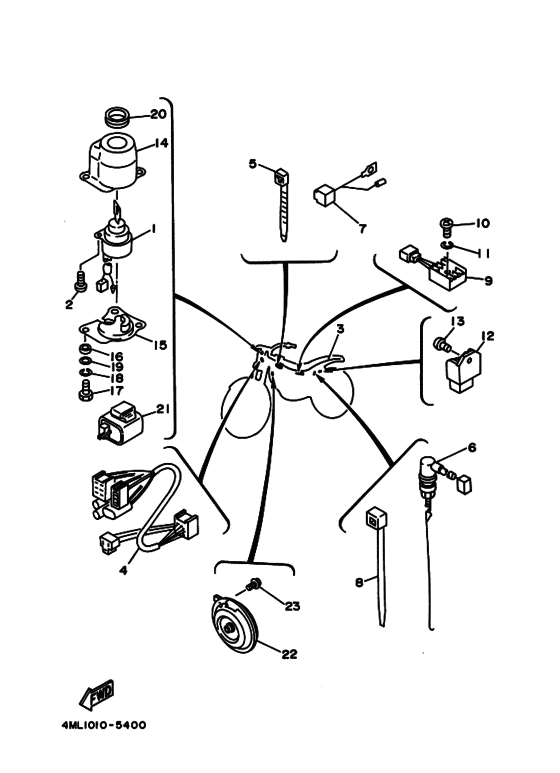

Electrical 2 Diagram Yamaha TY250 SCOTTISH
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4ML1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4ML-82021-00-00
Key Set
キーセツト; ＡＰ ＊１ |
4ML-82021-00-00 |
— | ||
|
1
|
1
4ML-82510-00-00
Main Switch Assy
|
4ML-82510-00-00 |
— | ||
|
2
|
2
90167-04073-00
Screw, Tapping
スクリユ，タツピング; |
90167-04073-00 |
— | ||
|
3
|
3
4ML-82590-00-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
4ML-82590-00-00 |
— | ||
|
4
|
4
4ML-84359-00-00
Cord, Headlight
コード，ヘツドライト; |
4ML-84359-00-00 |
— | ||
|
5
|
5
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
6
|
6
4GG-82530-00-00
Stop Switch Assy
|
4GG-82530-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
4ML-82509-00-00
Wire, Sub Lead
ワイヤ，サブリード; |
4ML-82509-00-00 |
— | ||
|
8
|
8
90464-13080-00 Band |
90464-13080-00 |
from US $1.28 |
||
| replacement | |||||
|
8
|
8
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
9
|
9
4ML-81970-00-00 Rectifier Assy |
4ML-81970-00-00 |
US $65.44 |
||
|
10
|
10
98517-06020-00 Screw, Panスクリユ，パンヘツド; |
98517-06020-00 |
from US $1.25 |
||
|
11
|
11
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
12
|
12
4ML-85700-00-00
Thermistor Assy
サーミスタアセンブリ; |
4ML-85700-00-00 |
— | ||
|
13
|
13
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
13
|
13
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
14
|
14
4ML-82568-00-00
Cover, Main Switch
カバー，メインスイツチ; |
4ML-82568-00-00 |
— | ||
|
15
|
15
4ML-82571-00-00
Panel, Switch
|
4ML-82571-00-00 |
— | ||
|
16
|
16
903-87067-04-00
Collar (796)
カラー; |
903-87067-04-00 |
— | ||
|
17
|
17
97027-05014-00 Bolt, Hexagonボルト; |
97027-05014-00 |
from US $1.84 |
||
|
18
|
18
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
19
|
19
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
20
|
20
90480-24222-00 Grommet |
90480-24222-00 |
from US $7.77 |
||
|
21
|
21
3TY-83350-00-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
3TY-83350-00-00 |
US $51.95 |
||
| replacement | |||||
|
21
|
21
4GY-83350-00-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
4GY-83350-00-00 |
US $62.31 |
||
|
22
|
22
4ML-83371-00-00 Hornホーン; |
4ML-83371-00-00 |
from US $34.54 |
||
| replacements | |||||
|
22
|
22
4ML-83371-11-00 Hornホーン; |
4ML-83371-11-00 |
from US $35.28 |
||
|
22
|
22
3MX-83371-11-00 Hornホーン; |
3MX-83371-11-00 |
from US $35.95 |
||
|
23
|
23
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
