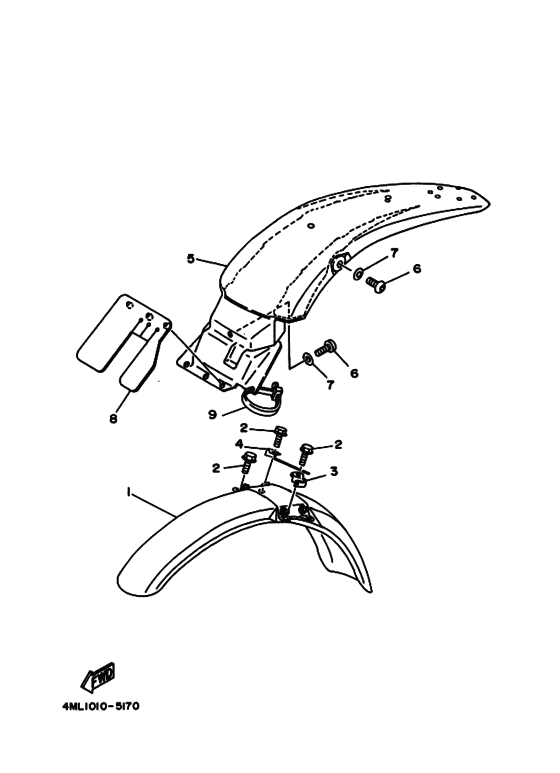

Fender Diagram Yamaha TY250 SCOTTISH
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4ML1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4ML-21510-00-00
Front Fender Comp
フロントフエンダコンプリート; グラフィック無 |
4ML-21510-00-00 |
— | ||
|
2
|
2
950-27060-16-00
Bolt, Flange
ボルト，フランジ; |
950-27060-16-00 |
— | ||
| replacement | |||||
|
2
|
2
901-05066-96-00 Bolt, Flangeボルト，フランジ; |
901-05066-96-00 |
from US $2.64 |
||
|
3
|
3
4AJ-25875-00-00
Holder, Brake Hose 1
ホルダ，ブレーキホース １; |
4AJ-25875-00-00 |
— | ||
|
4
|
4
4ML-23318-00-00
Wire, Holder 1
ホルダ，ケーブル １; |
4ML-23318-00-00 |
— | ||
|
5
|
5
4ML-21611-00-00
Fender, Rear
グラフィック無 |
4ML-21611-00-00 |
— | ||
|
6
|
6
92017-06012-00 Bolt, Button Headスクリユ; |
92017-06012-00 |
from US $1.52 |
||
|
7
|
7
90201-06571-00 Washer, Plateワツシヤ，プレート; |
90201-06571-00 |
from US $1.70 |
||
|
8
|
8
4GG-21621-00-00
Flap
|
4GG-21621-00-00 |
— | ||
|
9
|
9
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
