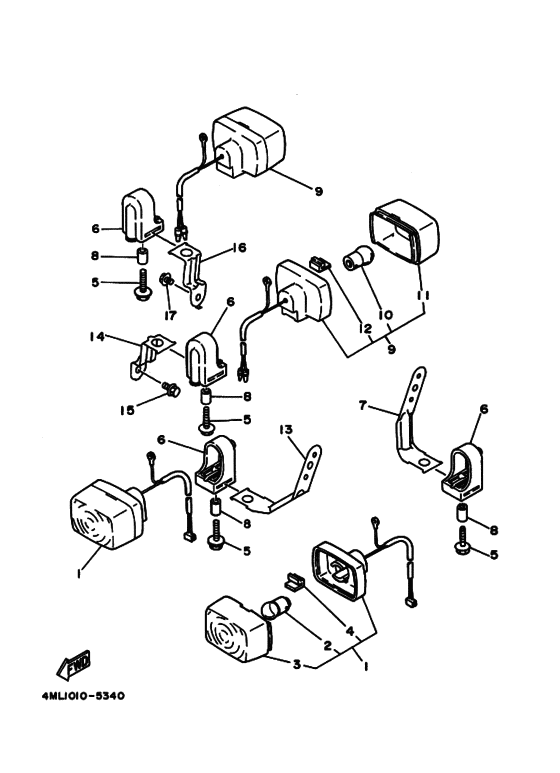

Flasher light Diagram Yamaha TY250 SCOTTISH
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4ML1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3XP-83310-00-00 Front Flasher Light Assy 1フロントフラツシヤライトアセンブリ １; |
3XP-83310-00-00 |
US $31.31 |
||
| replacement | |||||
|
1
|
1
3RW-83340-10-00 Rear Flasher Light Assy 2フロントフラツシヤライトアセンブリ １; |
3RW-83340-10-00 |
US $29.47 |
||
|
2
|
2
851-84744-00-00 Bulb．バルブ ; １２Ｖ−１０Ｗ |
851-84744-00-00 |
US $4.82 |
||
| replacement | |||||
|
2
|
2
3NS-83331-00-00 Bulb．バルブ ; １２Ｖ−１０Ｗ |
3NS-83331-00-00 |
from US $4.82 |
||
|
3
|
3
2T4-83312-00-00 Lens, Flasher．レンズ，フラツシヤ; |
2T4-83312-00-00 |
from US $3.38 |
||
|
4
|
4
1KH-83345-00-00 Plug, Blind．プラグ，ブラインド; |
1KH-83345-00-00 |
US $2.41 |
||
|
5
|
5
90159-05011-00 Screw, With Washer |
90159-05011-00 |
from US $1.70 |
||
|
6
|
6
1KH-83321-00-00 Damper, Flasher 1 |
1KH-83321-00-00 |
US $21.11 |
||
|
7
|
7
4JG-83368-00-00
Stay, Flasher 1
ステー，フラツシヤ １; |
4JG-83368-00-00 |
— | ||
|
8
|
8
90387-05285-00 Collar (256-82517-00)カラー; |
90387-05285-00 |
from US $2.69 |
||
|
9
|
9
3XP-83320-00-00 Front Flasher Light Assy 2フロントフラツシヤライトアセンブリ ２; |
3XP-83320-00-00 |
US $31.31 |
||
|
10
|
10
851-84744-00-00 Bulb．バルブ ; １２Ｖ−１０Ｗ |
851-84744-00-00 |
US $4.82 |
||
| replacement | |||||
|
10
|
10
3NS-83331-00-00 Bulb．バルブ ; １２Ｖ−１０Ｗ |
3NS-83331-00-00 |
from US $4.82 |
||
|
11
|
11
2T4-83312-00-00 Lens, Flasher．レンズ，フラツシヤ; |
2T4-83312-00-00 |
from US $3.38 |
||
|
12
|
12
1KH-83345-00-00 Plug, Blind．プラグ，ブラインド; |
1KH-83345-00-00 |
US $2.41 |
||
|
13
|
13
4JG-83369-00-00
Stay, Flasher 2
ステー，フラツシヤ ２; |
4JG-83369-00-00 |
— | ||
|
14
|
14
4ML-83368-00-00
Stay, Flasher 1
ステー，フラツシヤ １; |
4ML-83368-00-00 |
— | ||
|
15
|
15
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
16
|
16
4ML-83369-00-00
Stay, Flasher 2
ステー，フラツシヤ ２; |
4ML-83369-00-00 |
— | ||
|
17
|
17
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
