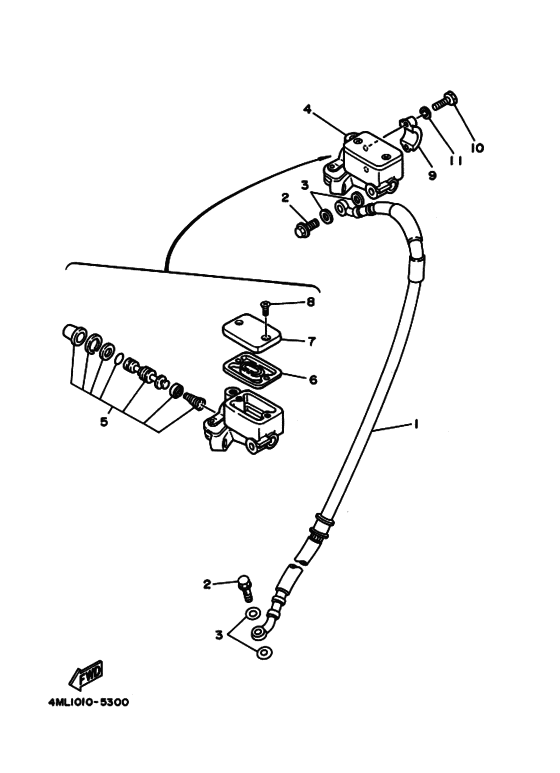

Front master cylinder Diagram Yamaha TY250 SCOTTISH
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4ML1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4ML-25872-00-00
Hose, Brake 1
ホース，ブレーキ １; |
4ML-25872-00-00 |
— | ||
|
2
|
2
90401-10159-00 Bolt, Union(3Gm)ボルト，ユニオン; |
90401-10159-00 |
from US $3.26 |
||
|
3
|
3
902-01101-18-00 Washer, Plateワツシヤ，プレート; |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
3
|
3
90201-108J9-00 Washer, Plateワツシヤ，プレート; |
90201-108J9-00 |
US $1.39 |
||
|
4
|
4
3RW-25870-02-00 Master Cylinder Sub Assembly (3マスターシリンダサブアセンブリ; |
3RW-25870-02-00 |
from US $195.53 |
||
| replacement | |||||
|
4
|
4
4GY-25870-02-00 Master Cylinder Sub Assyマスターシリンダサブアセンブリ; |
4GY-25870-02-00 |
from US $216.91 |
||
|
5
|
5
3RW-W0041-02-00 Cylinder Kit, Master．シリンダキツト，マスタ; |
3RW-W0041-02-00 |
from US $44.22 |
||
| replacements | |||||
|
5
|
5
5CG-W0041-00-00 Cylinder Kit, Master．シリンダキツト，マスタ; |
5CG-W0041-00-00 |
from US $45.11 |
||
|
5
|
5
5RS-25807-03-00 Cylinder Kit, Master．シリンダキツト，マスタ; |
5RS-25807-03-00 |
from US $45.11 |
||
|
6
|
6
3RW-25854-00-00 Diaphragm, Reservoir．ダイヤフラム，リザーバ; |
3RW-25854-00-00 |
from US $11.29 |
||
|
7
|
7
3RW-25852-00-00 Cap, Reservoir．キヤツプ，リザーバ; |
3RW-25852-00-00 |
from US $21.39 |
||
| replacement | |||||
|
7
|
7
4GY-25852-01-00 Cap, Reservoir．キヤツプ，リザーバ; |
4GY-25852-01-00 |
from US $21.39 |
||
|
8
|
8
98707-04012-00 Screw, Flat Head．スクリユ，フラツトヘツド; |
98707-04012-00 |
from US $1.52 |
||
|
9
|
9
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
10
|
10
970-17060-25-00 Boltボルト; |
970-17060-25-00 |
from US $1.36 |
||
|
11
|
11
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
