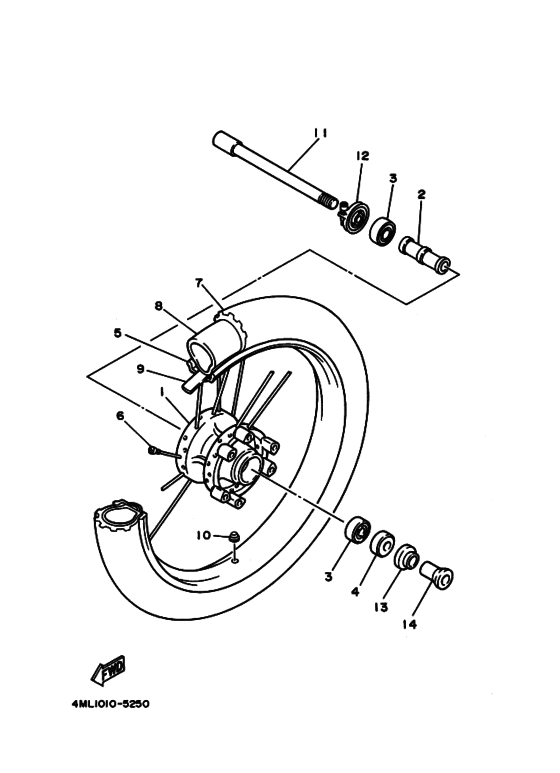

Front wheel Diagram Yamaha TY250 SCOTTISH
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4ML1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4AJ-25111-00-35
Hub, Front
ハブ，フロント; シルバー |
4AJ-25111-00-35 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
ハブ，フロント; シルバー |
999-99999-99-00 |
— | ||
|
2
|
2
90560-15352-00 Spacerスペーサ; |
90560-15352-00 |
from US $11.19 |
||
| replacement | |||||
|
2
|
2
90560-15240-00 Spacer (34L)スペーサ; |
90560-15240-00 |
from US $11.23 |
||
|
3
|
3
93306-20226-00 Bearing |
93306-20226-00 |
from US $15.26 |
||
|
4
|
4
93106-20021-00 Oil Sealオイルシール; |
93106-20021-00 |
from US $5.13 |
||
|
5
|
5
94416-21533-00
Rim (1.60-21)
．リム ; １６０−２１ |
94416-21533-00 |
— | ||
|
6
|
6
4AJ-25104-00-00
Spoke Set, Front
スポークセツト，フロント; |
4AJ-25104-00-00 |
— | ||
|
9
|
9
94330-21084-00 Band, Rim (1.60-21)．バンド，リム ; ３００−２１ |
94330-21084-00 |
from US $4.39 |
||
|
10
|
10
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
11
|
11
38V-25181-00-00
Axle, Wheel
アクスル，ホイール; |
38V-25181-00-00 |
— | ||
|
12
|
12
44J-25190-00-00
Gear Unit Assembly
|
44J-25190-00-00 |
— | ||
|
13
|
13
322-25118-00-00 Cover, Hub Dustカバー，ハブダスト; |
322-25118-00-00 |
from US $10.63 |
||
|
14
|
14
90560-15375-00
Spacer
スペーサ; |
90560-15375-00 |
— | ||
