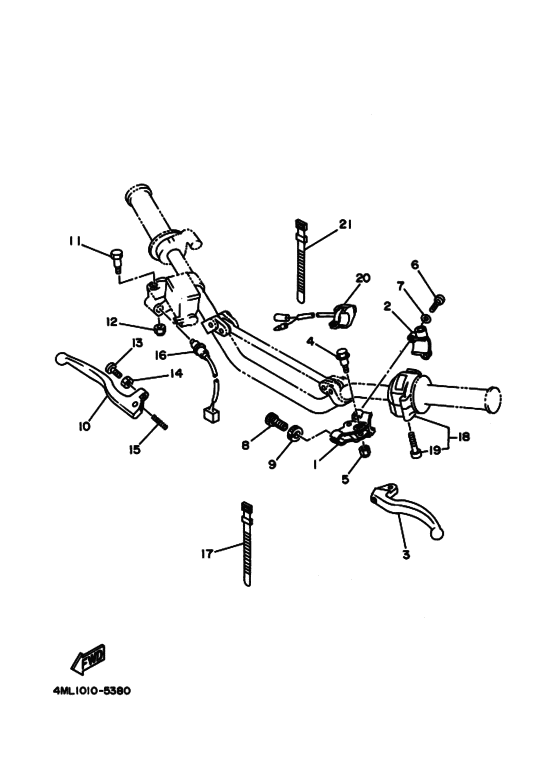

Handle switch & lever Diagram Yamaha TY250 SCOTTISH
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4ML1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1LN-82911-00-00 Holder, Lever 1ホルダー，レバー １ ; レフト |
1LN-82911-00-00 |
from US $36.90 |
||
|
2
|
2
33G-82913-00-00
Holder, Lever Lower 1
ホルダー，レバーロワ １ ; レフト |
33G-82913-00-00 |
— | ||
| replacement | |||||
|
2
|
2
33G-82913-01-00 Holder, Lever Lower 1ホルダー，レバーロワ １ ; レフト |
33G-82913-01-00 |
from US $18.03 |
||
|
3
|
3
23X-83912-00-00
Lever 1
レバー １; |
23X-83912-00-00 |
— | ||
| replacement | |||||
|
3
|
3
23X-83912-02-00 Lever 1レバー １; |
23X-83912-02-00 |
from US $21.96 |
||
|
4
|
4
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
5
|
5
956-07061-00-00
Nut, U
ナツト，Ｕ; |
956-07061-00-00 |
— | ||
| replacement | |||||
|
5
|
5
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
6
|
6
985-07050-20-00
Screw, Pan Head(4My)
スクリユ，パンヘツド; |
985-07050-20-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-05020-00 Screw, Pan Headスクリユ，パンヘツド; |
98517-05020-00 |
from US $1.70 |
||
|
7
|
7
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
8
|
8
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
8
|
8
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
9
|
9
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
9
|
9
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
10
|
10
38W-83922-00-00 Lever 2レバー ２; |
38W-83922-00-00 |
from US $22.39 |
||
| replacement | |||||
|
10
|
10
38W-83922-01-00 Lever 2レバー ２; |
38W-83922-01-00 |
from US $22.39 |
||
|
11
|
11
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
12
|
12
956-07061-00-00
Nut, U
ナツト，Ｕ; |
956-07061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
13
|
13
90149-06131-00 Screw |
90149-06131-00 |
from US $1.81 |
||
|
14
|
14
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
15
|
15
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
16
|
16
4FU-83980-00-00 Front Stop Switch Assy |
4FU-83980-00-00 |
US $24.79 |
||
| replacement | |||||
|
16
|
16
2UJ-83980-00-00 Front Stop Switch Assy |
2UJ-83980-00-00 |
from US $28.17 |
||
|
17
|
17
437-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-01-00 |
from US $1.81 |
||
|
18
|
18
3RW-83973-11-00
Switch, Handle 3
|
3RW-83973-11-00 |
— | ||
|
19
|
19
985-07050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-07050-30-00 |
— | ||
| replacement | |||||
|
19
|
19
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
20
|
20
53Y-83976-00-00 Switch, Handle 1 |
53Y-83976-00-00 |
from US $35.51 |
||
|
21
|
21
437-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-01-00 |
from US $1.81 |
||
