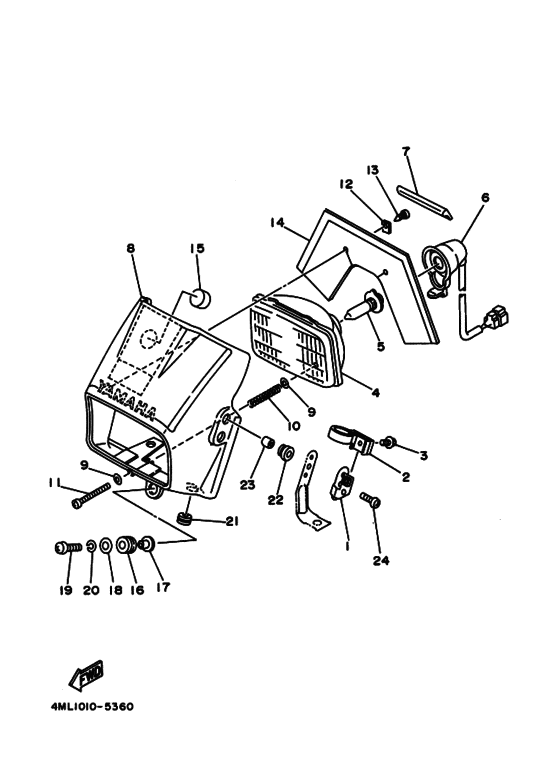

Headlight Diagram Yamaha TY250 SCOTTISH
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4ML1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4ML-2831V-00-00
Stay, Head Light 1
ステー， ヘツドライト １; |
4ML-2831V-00-00 |
— | ||
|
2
|
2
4GY-23389-00-00
Guide, Cable
ガイド，ケーブル; |
4GY-23389-00-00 |
— | ||
|
3
|
3
90105-05361-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-05361-00 |
from US $1.28 |
||
|
4
|
4
53Y-84120-00-00
Lens Assy
|
53Y-84120-00-00 |
— | ||
|
5
|
5
35R-84314-00-00 Bulb (12V30/30W) (2Gn-84314-00-１２Ｖ−３０／３０Ｗ |
35R-84314-00-00 |
US $21.49 |
||
| replacement | |||||
|
5
|
5
2GN-84314-00-XX
Bulb (12V30/30W) (2Gn-84314-00-
１２Ｖ−３０／３０Ｗ |
2GN-84314-00-XX |
— | ||
|
6
|
6
1KH-84140-01-00
Socket Cord Assy
ソケツトコードアセンブリ; |
1KH-84140-01-00 |
— | ||
|
7
|
7
26A-84143-00-00
Damper, Headlight Stay
ダンパ，ヘツドライトステー; |
26A-84143-00-00 |
— | ||
|
8
|
8
4ML-84111-00-00
Body, Headlight
グラフィック無 |
4ML-84111-00-00 |
— | ||
|
9
|
9
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
10
|
10
18A-84132-00-00 Spring, Screw |
18A-84132-00-00 |
from US $4.11 |
||
|
11
|
11
97701-40555-00 Screw, Rim Adjuster |
97701-40555-00 |
from US $4.39 |
||
| replacement | |||||
|
11
|
11
18A-84131-00-00 Screw, Rim Adjusting |
18A-84131-00-00 |
from US $4.39 |
||
|
12
|
12
26A-8411H-00-00 Plate, Stopperプレート， ストツパー; |
26A-8411H-00-00 |
US $3.37 |
||
|
13
|
13
97707-40610-00 Screw, Tappingスクリユ，タツピング; |
97707-40610-00 |
from US $1.66 |
||
|
14
|
14
1KH-84196-01-00
Cover, Socket
カバー，ソケツト; |
1KH-84196-01-00 |
— | ||
|
15
|
15
47G-83341-00-00
Damper, Flasher
|
47G-83341-00-00 |
— | ||
|
16
|
16
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
17
|
17
903-87063-88-00
Collar
カラー; |
903-87063-88-00 |
— | ||
| replacement | |||||
|
17
|
17
90387-06158-00 Collarカラー; |
90387-06158-00 |
from US $1.66 |
||
|
18
|
18
90201-06765-00 Washer, Plate (1Hf)ワツシヤ，プレート; |
90201-06765-00 |
from US $1.28 |
||
| replacements | |||||
|
18
|
18
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
18
|
18
90201-06020-00 Washer, Plateワツシヤ，プレート; |
90201-06020-00 |
from US $1.56 |
||
|
19
|
19
985-07060-25-00
Screw, Pan Head
スクリユ，パンヘツド; |
985-07060-25-00 |
— | ||
| replacement | |||||
|
19
|
19
98517-06025-00 Screw, Pan Headスクリユ，パンヘツド; |
98517-06025-00 |
from US $1.42 |
||
|
20
|
20
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
21
|
21
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
|
22
|
22
90480-12072-00 Grommet |
90480-12072-00 |
from US $1.94 |
||
|
23
|
23
90387-066H9-00 Collarカラー; |
90387-066H9-00 |
from US $2.94 |
||
|
24
|
24
98904-05020-00 Screw, Bind |
98904-05020-00 |
US $1.56 |
||
