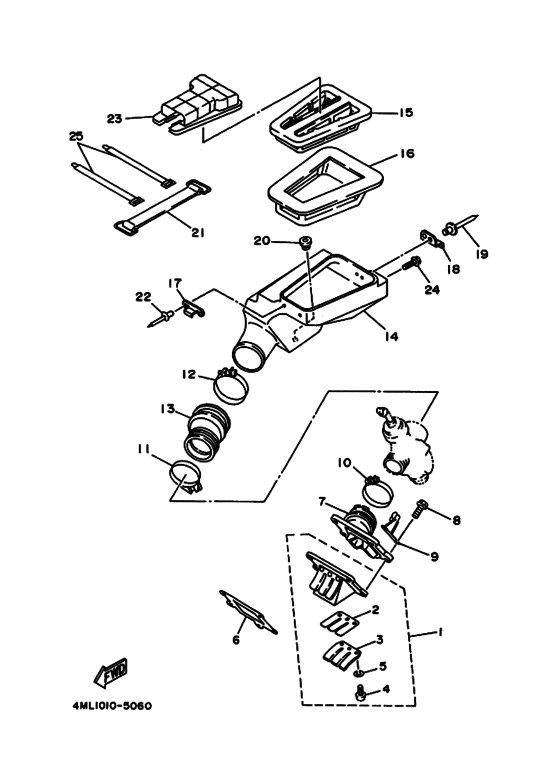

Intake Diagram Yamaha TY250 SCOTTISH
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4ML1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4GG-13610-00-00
Reed Valve Assy
リードバルブアセンブリ; |
4GG-13610-00-00 |
— | ||
|
2
|
2
4GG-13613-00-00
Reed, Valve
．リード，バルブ; |
4GG-13613-00-00 |
— | ||
|
3
|
3
4GG-13616-00-00
Stopper, Reed Valve
．ストツパ，リードバルブ; |
4GG-13616-00-00 |
— | ||
|
4
|
4
98507-03008-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
4
|
4
98517-03008-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-03008-00 |
from US $2.27 |
||
|
5
|
5
92990-03100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
4GG-13621-00-00 Gasket, Valve Seatパツキン，バルブシート; |
4GG-13621-00-00 |
US $6.09 |
||
|
7
|
7
4GG-13565-00-00 Joint, Carburetor |
4GG-13565-00-00 |
US $156.33 |
||
|
8
|
8
950-27060-20-00 Bolt, Flangeボルト，フランジ; |
950-27060-20-00 |
from US $1.52 |
||
|
9
|
9
4ML-13151-00-00
Stay
ステー; |
4ML-13151-00-00 |
— | ||
|
10
|
10
90460-43053-00 Clamp, Hoseクランプ，ホース; |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
10
|
10
90460-43179-00 Clamp, Hoseクランプ，ホース; |
90460-43179-00 |
from US $7.65 |
||
|
11
|
11
90460-49058-00 Clamp, Hoseクランプ，ホース; |
90460-49058-00 |
from US $3.72 |
||
|
12
|
12
90460-58015-00 Hose Clamp Assyクランプ，ホース; |
90460-58015-00 |
from US $4.53 |
||
| replacement | |||||
|
12
|
12
90450-58002-00 Hose Clamp Assyクランプ，ホース; |
90450-58002-00 |
from US $4.53 |
||
|
13
|
13
39K-14453-00-00 Joint, Air Cleaner 1ジヨイント，エアクリーナ １; |
39K-14453-00-00 |
from US $30.02 |
||
|
14
|
14
4GG-14411-00-00
Case, Air Cleaner 1
ケース，エアクリーナ １; |
4GG-14411-00-00 |
— | ||
|
15
|
15
38V-14412-00-00
Cap, Clean Case 1
キヤツプ，クリーナケース １; |
38V-14412-00-00 |
— | ||
|
16
|
16
38V-14451-00-00 Element, Air Cleanrエレメント，エアクリーナ; |
38V-14451-00-00 |
from US $25.33 |
||
| replacement | |||||
|
16
|
16
38V-14451-01-00 エレメント，エアクリーナ; |
38V-14451-01-00 |
US $24.26 |
||
|
17
|
17
4GG-14493-00-00
Stay 1
ステー １; |
4GG-14493-00-00 |
— | ||
|
18
|
18
26A-14436-00-00 Hook |
26A-14436-00-00 |
US $6.75 |
||
|
19
|
19
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.54 |
||
|
20
|
20
90480-09211-00
Grommet
|
90480-09211-00 |
— | ||
|
21
|
21
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $14.29 |
||
|
22
|
22
90267-40043-00
Rivet, Blind 46Y
|
90267-40043-00 |
— | ||
| replacement | |||||
|
22
|
22
902-67400-80-00
Rivet, Blind (5H0)
|
902-67400-80-00 |
— | ||
|
23
|
23
4ML-14437-00-00
Duct
|
4ML-14437-00-00 |
— | ||
|
24
|
24
950-27060-12-00 Bolt, Flangeボルト，フランジ; |
950-27060-12-00 |
from US $1.28 |
||
|
25
|
25
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
25
|
25
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
25
|
25
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
