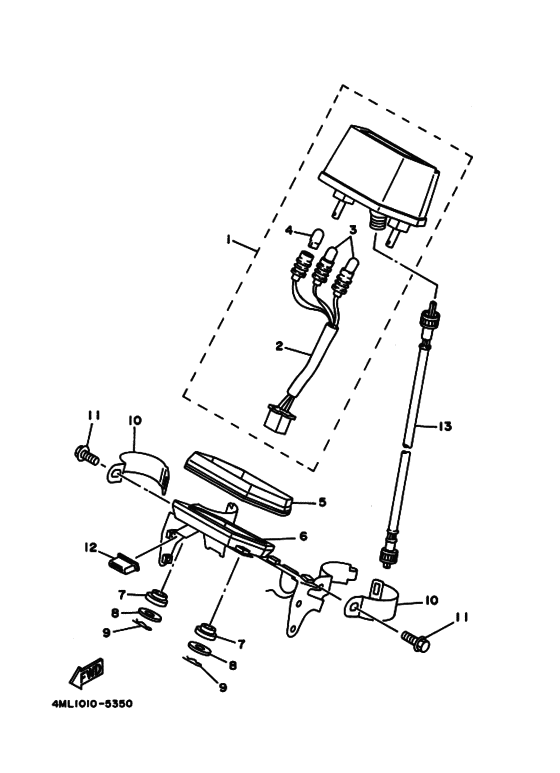

Meter Diagram Yamaha TY250 SCOTTISH
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4ML1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4ML-83570-00-00
Speedometer Assy
スピードメータアセンブリ; |
4ML-83570-00-00 |
— | ||
|
2
|
2
4ML-83536-00-00
Socket, Meter
．ソケツト，メータ; |
4ML-83536-00-00 |
— | ||
|
3
|
3
4G1-84744-00-00 Bulb (12V-3.4W T10)．．バルブ ; １２Ｖ−３４Ｗ |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
3
|
3
4G1-84744-00-XX
Bulb (12V-3.4W T10)
．．バルブ ; １２Ｖ−３４Ｗ |
4G1-84744-00-XX |
— | ||
|
4
|
4
3GM-83517-00-00 Bulb (12V-1.7W)．．バルブ ; １２Ｖ−１７Ｗ; ニユートラル |
3GM-83517-00-00 |
from US $3.26 |
||
|
5
|
5
5Y0-83513-00-00 Damper |
5Y0-83513-00-00 |
from US $29.96 |
||
|
6
|
6
4ML-83519-00-00
Bracket, Meter
ブラケツト，メータ; |
4ML-83519-00-00 |
— | ||
|
7
|
7
1M1-83526-00-00
Damper 2
ダンパ ２; |
1M1-83526-00-00 |
— | ||
| replacement | |||||
|
7
|
7
1M1-83526-01-00 Damper 2ダンパ ２; |
1M1-83526-01-00 |
from US $5.72 |
||
|
8
|
8
90201-05033-00 Washer, Plateワツシヤ，プレート; |
90201-05033-00 |
from US $1.39 |
||
|
9
|
9
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
10
|
10
4ML-28396-00-00
Plate 1
プレート １; |
4ML-28396-00-00 |
— | ||
|
11
|
11
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
12
|
12
30X-23445-00-00 Damper |
30X-23445-00-00 |
from US $8.74 |
||
|
13
|
13
53Y-83550-00-00
Speedometer Cable Assy
スピードメータケーブルアセンブリ; |
53Y-83550-00-00 |
— | ||
| replacement | |||||
|
13
|
13
53Y-83550-01-00
Speedometer Cable Assy
スピードメータケーブルアセンブリ; |
53Y-83550-01-00 |
— | ||
