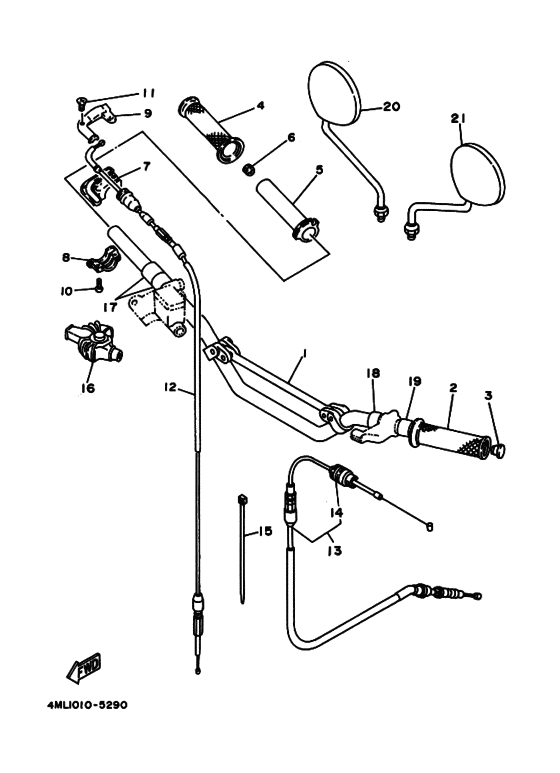

Steering handle & cable Diagram Yamaha TY250 SCOTTISH
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4ML1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4GG-26100-00-00
Handle Assy
ハンドルアセンブリ; |
4GG-26100-00-00 |
— | ||
| replacement | |||||
|
1
|
1
4GG-26100-10-00
Handle Assy
ハンドルアセンブリ; |
4GG-26100-10-00 |
— | ||
|
2
|
2
38V-26241-00-00 Grip Lhグリツプ ; レフト |
38V-26241-00-00 |
US $21.17 |
||
|
3
|
3
90338-16148-00 Plug |
90338-16148-00 |
from US $2.09 |
||
|
4
|
4
38V-26242-00-00
Grip Rh
グリツプ ; ライト |
38V-26242-00-00 |
— | ||
|
5
|
5
434-26243-12-00 Tube, Throttle Guideチユーブ，スロツトルガイド; |
434-26243-12-00 |
from US $12.62 |
||
|
6
|
6
90338-12192-00 Plug(2Gu) |
90338-12192-00 |
from US $2.02 |
||
|
7
|
7
38V-26281-00-98 Cap, Grip Upperツヤケシ クロ |
38V-26281-00-98 |
from US $29.04 |
||
|
8
|
8
493-26282-00-98 Cap, Grip Underキヤツプ，グリツプロワー; ツヤケシ クロ |
493-26282-00-98 |
from US $37.44 |
||
|
9
|
9
38V-2628H-00-00 Cap, Wireキヤツプ，ワイヤ; |
38V-2628H-00-00 |
from US $8.22 |
||
|
10
|
10
98507-05016-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-05016-00 |
from US $1.18 |
||
|
11
|
11
98707-04012-00 Screw, Flat Headスクリユ，フラツトヘツド; |
98707-04012-00 |
from US $1.52 |
||
|
12
|
12
4ML-26311-00-00
Cable, Throttle 1
ケーブル，スロツトル １; |
4ML-26311-00-00 |
— | ||
|
13
|
13
4ML-26335-00-00
Cable, clutch
ケーブル，クラツチ; |
4ML-26335-00-00 |
— | ||
|
14
|
14
1E6-26342-00-00 Boot, Cable．ブーツ，ケーブル; |
1E6-26342-00-00 |
from US $15.68 |
||
|
15
|
15
90464-13080-00 Band |
90464-13080-00 |
from US $1.28 |
||
| replacement | |||||
|
15
|
15
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
16
|
16
1T5-26372-00-00 Cover, Handle Lever 1カバー，ハンドルレバー １; |
1T5-26372-00-00 |
from US $14.29 |
||
|
17
|
17
90387-225N2-00 Collarカラー; |
90387-225N2-00 |
from US $10.34 |
||
|
18
|
18
90387-22591-00 Collarカラー; |
90387-22591-00 |
from US $5.97 |
||
|
19
|
19
90387-22660-00 Collarカラー; |
90387-22660-00 |
from US $1.84 |
||
|
20
|
20
3Y1-26290-00-00 Back Mirror Assy (R.h)バツクミラーアセンブリ ; ライト |
3Y1-26290-00-00 |
from US $17.18 |
||
|
21
|
21
5Y1-26290-10-00 Back Mirror Assy (L.h)バツクミラーアセンブリ ; レフト |
5Y1-26290-10-00 |
from US $35.99 |
||
| replacement | |||||
|
21
|
21
5Y1-26290-11-00 MIRROR ASSY., 2バツクミラーアセンブリ ; レフト |
5Y1-26290-11-00 |
from US $35.99 |
||
