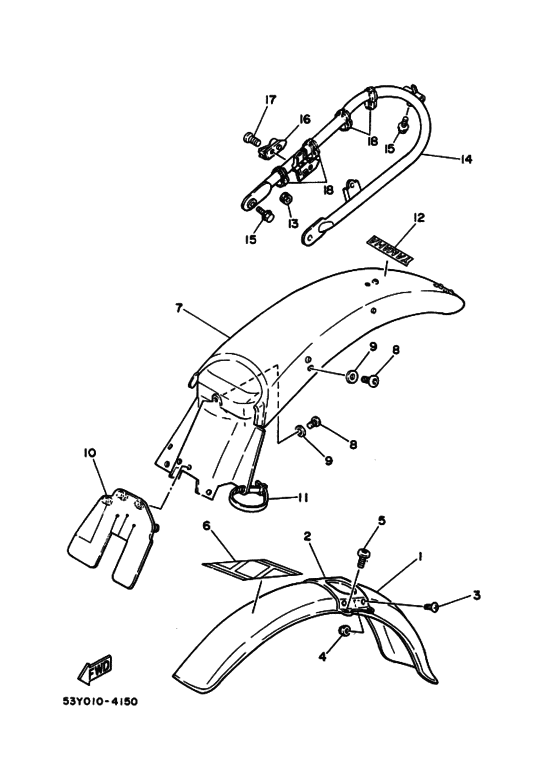

Fender Diagram Yamaha TY250
- Year
- 1984
- Colour
- White (WW; 0036)
- Model code
- 53Y0
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38V-21511-00-00 Fenderホワイト |
38V-21511-00-00 |
from US $36.08 |
||
| replacement | |||||
|
1
|
1
4AJ-21511-00-00 Fender, Frontホワイト |
4AJ-21511-00-00 |
from US $40.86 |
||
|
2
|
2
38V-21512-00-00 Bracket, Fender |
38V-21512-00-00 |
US $60.77 |
||
| replacement | |||||
|
2
|
2
4GG-21512-00-00 Bracket, Fender |
4GG-21512-00-00 |
US $60.77 |
||
|
3
|
3
90154-05004-00 Screw, C.r. Binding (2T4)スクリユ，クロスバインデイング; |
90154-05004-00 |
from US $1.70 |
||
| replacement | |||||
|
3
|
3
901-19050-71-00 Bolt, With Washerスクリユ，クロスバインデイング; |
901-19050-71-00 |
from US $1.84 |
||
|
4
|
4
90185-05101-00 Nut, Self-Locking |
90185-05101-00 |
from US $1.42 |
||
| replacement | |||||
|
4
|
4
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.52 |
||
|
5
|
5
90157-06025-00 Screw, Pan Head |
90157-06025-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.70 |
||
|
6
|
6
38V-21575-00-00
Graphic, Fender
シール １; |
38V-21575-00-00 |
— | ||
|
7
|
7
53Y-21610-00-00
Rear Fender Comp
リヤフエンダコンプリート; ホワイト |
53Y-21610-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
リヤフエンダコンプリート; ホワイト |
999-99999-99-00 |
— | ||
|
8
|
8
90157-06025-00 Screw, Pan Head |
90157-06025-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.70 |
||
|
9
|
9
90201-06571-00 Washer, Plateワツシヤ，プレート; |
90201-06571-00 |
from US $1.70 |
||
|
10
|
10
38V-21621-00-00
Flap
|
38V-21621-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
12
|
12
38V-2163G-00-00
Emblem 1
エンブレム １; |
38V-2163G-00-00 |
— | ||
|
13
|
13
90480-14052-00 Grommet |
90480-14052-00 |
from US $1.39 |
||
|
14
|
14
53Y-21617-00-FH
Bracket, Fender
フアイヤーレツド |
53Y-21617-00-FH |
— | ||
|
15
|
15
95801-06010-00 Bolt, Flange |
95801-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
15
|
15
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
15
|
15
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
16
|
16
1E6-21308-00-00 Helmet Hanger Assyヘルメツトハンガーアセンブリ; |
1E6-21308-00-00 |
from US $56.34 |
||
| replacement | |||||
|
16
|
16
5H0-21308-01-00 Helmet Hanger Assyヘルメツトハンガーアセンブリ; |
5H0-21308-01-00 |
from US $59.13 |
||
|
17
|
17
92701-G6018-00
Screw, Flat Head
スクリユ，フラツトヘツド; |
92701-G6018-00 |
— | ||
|
18
|
18
90464-15065-00 Clamp |
90464-15065-00 |
from US $1.84 |
||
