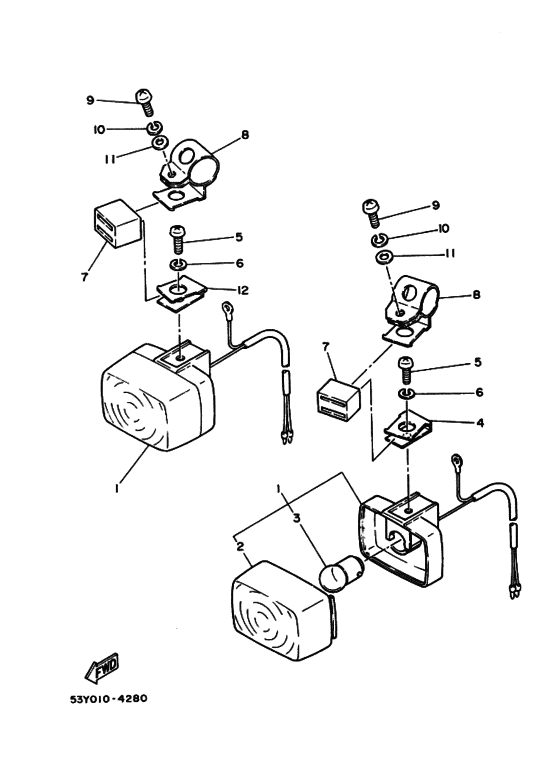

Flasher light Diagram Yamaha TY250
- Year
- 1984
- Colour
- White (WW; 0036)
- Model code
- 53Y0
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53Y-83310-10-00
Front Flasher Light Assy 1
|
53Y-83310-10-00 |
— | ||
|
2
|
2
2T4-83312-00-00 Lens, Flasher．レンズ，フラツシヤ; |
2T4-83312-00-00 |
from US $3.38 |
||
|
3
|
3
185-83311-10-00 Bulb, Flasher (6V-8W)．バルブ ; ６Ｖ−８Ｗ |
185-83311-10-00 |
US $2.13 |
||
|
4
|
4
53Y-83318-00-00
Stay, Flasher 1
ステー，フラツシヤ １; |
53Y-83318-00-00 |
— | ||
|
5
|
5
98506-05012-00 Screw, Pan Head |
98506-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
5
|
5
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
5
|
5
976-06051-12-00
Screw, Pan Head With Washer
|
976-06051-12-00 |
— | ||
|
6
|
6
929-06051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06051-00-00 |
— | ||
| replacement | |||||
|
6
|
6
92907-05100-00 Washer, Springワツシヤ，スプリング; |
92907-05100-00 |
from US $1.56 |
||
|
7
|
7
36X-83321-00-00 Damper, Flasher 1 |
36X-83321-00-00 |
US $8.64 |
||
|
8
|
8
53Y-83368-00-00
Stay, Flasher 1
ステー，フラツシヤ; |
53Y-83368-00-00 |
— | ||
|
9
|
9
98506-05012-00 Screw, Pan Head |
98506-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
9
|
9
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
9
|
9
976-06051-12-00
Screw, Pan Head With Washer
|
976-06051-12-00 |
— | ||
|
10
|
10
929-06051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06051-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92907-05100-00 Washer, Springワツシヤ，スプリング; |
92907-05100-00 |
from US $1.56 |
||
|
11
|
11
929-06056-00-00
Washer, Plate
ワツシヤ，プレート; |
929-06056-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.18 |
||
|
12
|
12
53Y-83328-00-00
Stay, Flasher 2
ステー，フラツシヤ ２; |
53Y-83328-00-00 |
— | ||
