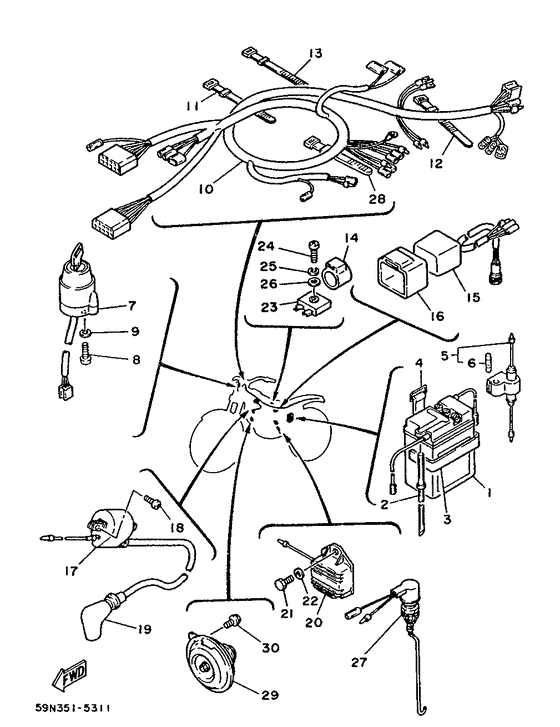

Electrical 1 Diagram Yamaha TY250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 59N
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
90890-85705-00
Battery Assy
|
90890-85705-00 |
— | ||
|
02
|
02
90445-08721-00 Hose (L1500) |
90445-08721-00 |
from US $10.91 |
||
| replacement | |||||
|
02
|
02
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
03
|
03
53Y-82121-00-00 Pad, Battery |
53Y-82121-00-00 |
US $2.18 |
||
|
04
|
04
1E6-82131-00-00 Band, Battery |
1E6-82131-00-00 |
from US $14.51 |
||
|
05
|
05
1E6-82150-00-00
Fuse Holder Assembly
|
1E6-82150-00-00 |
— | ||
|
06
|
06
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $2.02 |
||
|
07
|
07
1FE-82510-00-00 Main Switch Assy |
1FE-82510-00-00 |
from US $77.24 |
||
| replacements | |||||
|
07
|
07
53C-82510-00-00 MAIN SWITCH ASSY |
53C-82510-00-00 |
from US $63.95 |
||
|
07
|
07
53C-82510-01-00 Main Switch Assy |
53C-82510-01-00 |
US $70.74 |
||
|
08
|
08
98501-05012-00 Screw, Pan Head |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
08
|
08
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
08
|
08
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
09
|
09
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
09
|
09
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
59N-82590-10-00
Wire Harness Assy
|
59N-82590-10-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
25G-83936-00-00 Band, Switch Cord |
25G-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
12
|
12
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
13
|
13
437-83936-10-00 Band, Switch Cord |
437-83936-10-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
14
|
14
29L-26339-00-00
Boot
|
29L-26339-00-00 |
— | ||
|
15
|
15
53Y-85540-20-00
C.d.i. Unit Assy
|
53Y-85540-20-00 |
— | ||
|
16
|
16
2A7-85546-00-00 Band |
2A7-85546-00-00 |
from US $17.85 |
||
|
17
|
17
43G-82310-40-00 Ignition Coil Assembly |
43G-82310-40-00 |
US $136.12 |
||
|
18
|
18
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
18
|
18
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
19
|
19
1M1-82370-21-00 Plug Cap AssyWith noise suppressor |
1M1-82370-21-00 |
from US $28.34 |
||
| replacement | |||||
|
19
|
19
8DG-82370-00-00 Plug Cap AssyWith noise suppressor |
8DG-82370-00-00 |
from US $28.34 |
||
|
20
|
20
443-81910-62-00
Voltage Reg Assembly (498-81910
|
443-81910-62-00 |
— | ||
|
21
|
21
97002-06010-00 Bolt |
97002-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
353-81970-63-00 Rectifier AssemblyStanley |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
23
|
23
353-81970-M0-00 Rectifier AssyStanley |
353-81970-M0-00 |
from US $40.62 |
||
|
23
|
23
353-81970-M1-00 Rectifier AssyStanley |
353-81970-M1-00 |
US $17.99 |
||
|
24
|
24
98501-05020-00 Screw, Pan Head |
98501-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
24
|
24
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
25
|
25
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
26
|
26
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
26
|
26
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
26
|
26
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
27
|
27
53Y-82530-00-00
Stop Switch Assy
|
53Y-82530-00-00 |
— | ||
| replacement | |||||
|
27
|
27
53Y-82530-02-00
Stop Switch Assy
|
53Y-82530-02-00 |
— | ||
|
28
|
28
437-83936-10-00 Band, Switch Cord |
437-83936-10-00 |
from US $1.56 |
||
| replacement | |||||
|
28
|
28
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
29
|
29
59N-83371-20-00
Horn
|
59N-83371-20-00 |
— | ||
|
30
|
30
95826-06010-00 Bolt, Flange |
95826-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
30
|
30
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
