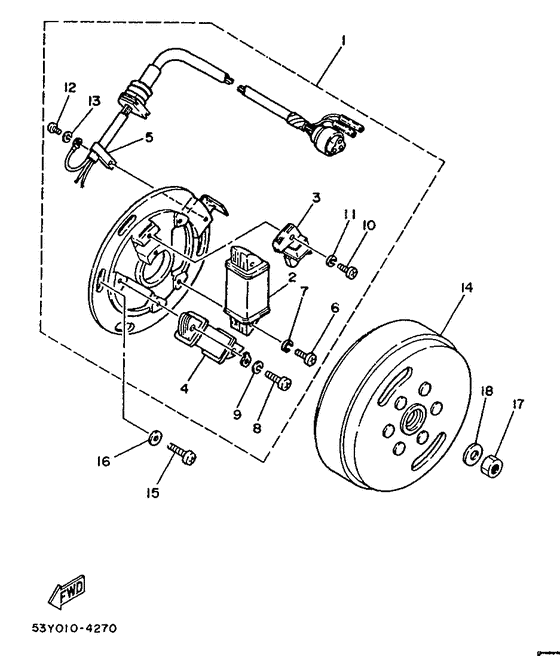

Generator Diagram Yamaha TY250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 59N
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
53Y-85510-20-00
Stator Assy
|
53Y-85510-20-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
2X9-85512-20-00
Coil Source 2
|
2X9-85512-20-00 |
— | ||
|
03
|
03
2X9-85580-20-00
Coil, Pulser
|
2X9-85580-20-00 |
— | ||
|
04
|
04
53Y-85513-20-00
Coil, Lighting 1
|
53Y-85513-20-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
445-81328-20-00 Clamp |
445-81328-20-00 |
from US $3.54 |
||
|
06
|
06
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
06
|
06
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
06
|
06
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
07
|
07
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
08
|
08
98501-05025-00 Screw, Pan Head |
98501-05025-00 |
US $1.35 |
||
| replacement | |||||
|
08
|
08
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
09
|
09
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
10
|
10
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
11
|
11
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
985-01040-08-00
Screw, Pan Head
|
985-01040-08-00 |
— | ||
| replacement | |||||
|
12
|
12
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
13
|
13
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
14
|
14
1LW-85550-20-00
Rotor Assy
|
1LW-85550-20-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
16
|
16
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
16
|
16
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
16
|
16
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
17
|
17
901-70120-67-00
Nut, Hexagon
|
901-70120-67-00 |
— | ||
| replacement | |||||
|
17
|
17
90170-12347-00 Nut, Hexagon |
90170-12347-00 |
from US $1.70 |
||
|
18
|
18
90201-12593-00 Washer, Plate |
90201-12593-00 |
from US $4.53 |
||
