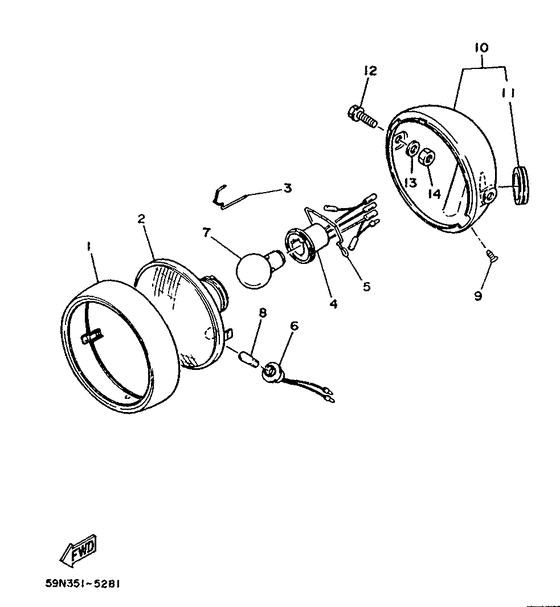

Headlight Diagram Yamaha TY250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 59N
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
290-84115-21-00
Rim, Headlight
|
290-84115-21-00 |
— | ||
|
02
|
02
290-84120-21-00
Lens Assy
|
290-84120-21-00 |
— | ||
|
03
|
03
290-84124-21-00 Spring, Set |
290-84124-21-00 |
from US $5.68 |
||
|
04
|
04
308-84112-21-00
Socket
|
308-84112-21-00 |
— | ||
|
05
|
05
308-84135-21-00
Spring
|
308-84135-21-00 |
— | ||
|
06
|
06
34L-84346-00-00 Socket, Pilot Light |
34L-84346-00-00 |
US $21.11 |
||
| replacement | |||||
|
06
|
06
52E-84346-00-00 Socket, Pilot Light |
52E-84346-00-00 |
US $21.11 |
||
|
09
|
09
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
|
10
|
10
1X0-84130-00-36
Body Assy, Headlight
Clean white |
1X0-84130-00-36 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
Clean white |
999-99999-99-00 |
— | ||
|
11
|
11
214-84153-60-00 Grommet, Wire Harness |
214-84153-60-00 |
from US $2.99 |
||
|
12
|
12
95023-10016-00 Bolt, Flange |
95023-10016-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
95027-10016-00 Bolt, Flange |
95027-10016-00 |
from US $1.56 |
||
|
13
|
13
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
14
|
14
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
