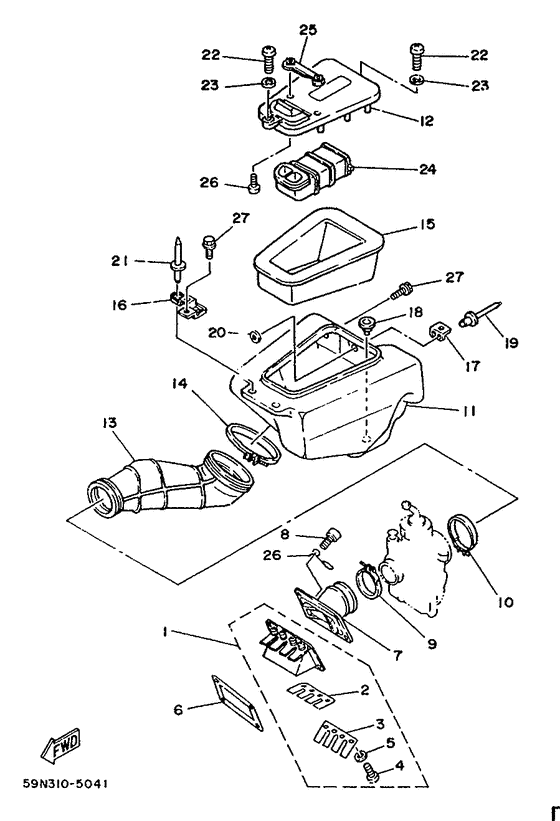

Intake Diagram Yamaha TY250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 59N
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1M1-13610-10-00
Reed Valve Assembly
|
1M1-13610-10-00 |
— | ||
| replacement | |||||
|
01
|
01
46Y-13610-00-00
Reed Valve Assembly
|
46Y-13610-00-00 |
— | ||
|
02
|
02
1M1-13613-10-00 Reed, Valve |
1M1-13613-10-00 |
from US $18.84 |
||
| replacement | |||||
|
02
|
02
8AT-13613-00-00 Reed, Valve |
8AT-13613-00-00 |
from US $16.16 |
||
|
03
|
03
1M1-13616-00-00
Stopper, Reed Valve
|
1M1-13616-00-00 |
— | ||
| replacement | |||||
|
03
|
03
46Y-13616-00-00
Stopper, Reed Valve
|
46Y-13616-00-00 |
— | ||
|
04
|
04
98501-03008-00 Screw, Pan Head |
98501-03008-00 |
from US $1.21 |
||
| replacement | |||||
|
04
|
04
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
05
|
05
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
06
|
06
8Y7-13556-00-00 Gasket, Manifold |
8Y7-13556-00-00 |
from US $1.98 |
||
| replacement | |||||
|
06
|
06
8Y7-13556-01-00 Gasket, Manifold |
8Y7-13556-01-00 |
from US $2.02 |
||
|
07
|
07
38V-13565-00-00
Joint, Carburetor
|
38V-13565-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
08
|
08
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
09
|
09
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
09
|
09
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
10
|
10
90460-49058-00 Clamp, Hose |
90460-49058-00 |
from US $3.72 |
||
|
11
|
11
53Y-14411-00-00
Case, Air Cleaner 1
|
53Y-14411-00-00 |
— | ||
|
12
|
12
59N-14412-00-00
Cap, Cleaner Case 1
|
59N-14412-00-00 |
— | ||
|
13
|
13
53Y-14453-00-00
Joint,air Clean 1
|
53Y-14453-00-00 |
— | ||
| replacement | |||||
|
13
|
13
38V-14453-00-00
Joint 1
|
38V-14453-00-00 |
— | ||
|
14
|
14
90460-01186-00
Clamp, Hose
|
90460-01186-00 |
— | ||
|
15
|
15
53Y-14451-00-00 Element, Air Cleaner |
53Y-14451-00-00 |
US $40.16 |
||
|
16
|
16
53Y-14493-00-00
Stay 1
|
53Y-14493-00-00 |
— | ||
|
17
|
17
53Y-14494-00-00
Stay 2
|
53Y-14494-00-00 |
— | ||
|
18
|
18
90480-09211-00
Grommet
|
90480-09211-00 |
— | ||
|
19
|
19
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.54 |
||
|
20
|
20
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
21
|
21
90267-40043-00
Rivet, Blind 46Y
|
90267-40043-00 |
— | ||
| replacement | |||||
|
21
|
21
902-67400-80-00
Rivet, Blind (5H0)
|
902-67400-80-00 |
— | ||
|
22
|
22
985-06050-16-00
Screw, Pan Head
|
985-06050-16-00 |
— | ||
| replacements | |||||
|
22
|
22
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
22
|
22
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
23
|
23
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
24
|
24
1K8-14437-01-00
Duct
|
1K8-14437-01-00 |
— | ||
|
25
|
25
59N-14477-00-00
Plate
|
59N-14477-00-00 |
— | ||
|
26
|
26
98906-04008-00 Screw, Bind |
98906-04008-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
98907-04008-00 Screw, Binding |
98907-04008-00 |
from US $1.56 |
||
|
27
|
27
95801-06012-00 Bolt, Flange (1E2) |
95801-06012-00 |
from US $1.07 |
||
| replacements | |||||
|
27
|
27
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
27
|
27
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.39 |
||
