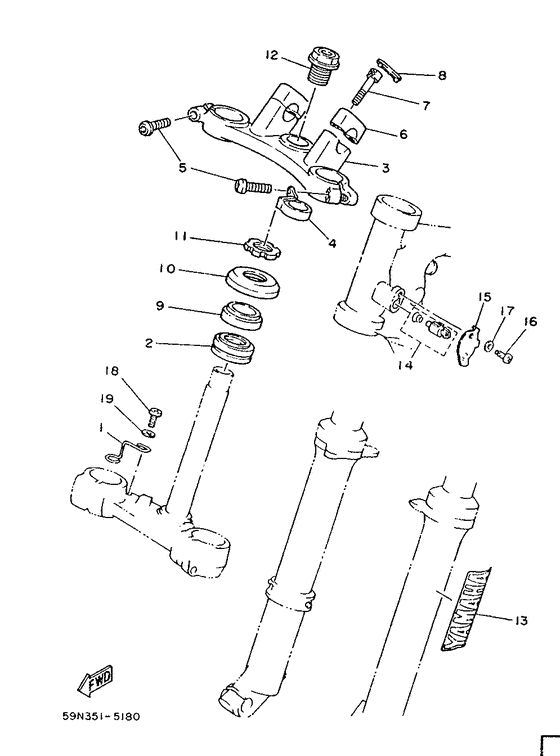

Steering Diagram Yamaha TY250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 59N
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
53Y-23319-01-00
Holder, Cable 2
|
53Y-23319-01-00 |
— | ||
|
02
|
02
93332-00059-00 Bearing |
93332-00059-00 |
from US $43.24 |
||
| replacement | |||||
|
02
|
02
93332-00079-00 Bearing |
93332-00079-00 |
from US $42.67 |
||
|
03
|
03
38V-23435-00-39
Crown, Handle
Clear no buffing |
38V-23435-00-39 |
— | ||
|
04
|
04
4V1-23317-00-00
Holder, Cable
|
4V1-23317-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
90110-08071-00 Bolt, Hexagon Socket Head |
90110-08071-00 |
from US $4.72 |
||
|
06
|
06
4H7-23441-00-38 Holder, Handle UpperClear buffing |
4H7-23441-00-38 |
from US $26.64 |
||
| replacement | |||||
|
06
|
06
4H7-23441-01-38 Holder, Handle UpperClear buffing |
4H7-23441-01-38 |
from US $26.64 |
||
|
07
|
07
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
07
|
07
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
08
|
08
5K5-23469-00-00 Cap, Bolt |
5K5-23469-00-00 |
US $22.59 |
||
|
09
|
09
93332-00023-00 Bearing |
93332-00023-00 |
from US $22.53 |
||
| replacement | |||||
|
09
|
09
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.62 |
||
|
10
|
10
1W1-23416-00-00 Cover, Ball Race 2 |
1W1-23416-00-00 |
from US $15.02 |
||
|
11
|
11
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
11
|
11
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
11
|
11
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
12
|
12
90105-14137-00 Bolt, Flange |
90105-14137-00 |
from US $5.93 |
||
| replacement | |||||
|
12
|
12
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
13
|
13
99232-00040-00
Emblem, Yamaha (38A)
|
99232-00040-00 |
— | ||
|
15
|
15
134-23484-10-00 Cap, Handle Lock |
134-23484-10-00 |
from US $10.34 |
||
|
16
|
16
90269-04003-00 Rivet |
90269-04003-00 |
from US $2.55 |
||
|
17
|
17
90208-04029-00 Washer, Conical Spring |
90208-04029-00 |
from US $1.98 |
||
|
18
|
18
92502-06008-00 Screw, Pan Head |
92502-06008-00 |
US $1.56 |
||
| replacements | |||||
|
18
|
18
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
18
|
18
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
|
19
|
19
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
