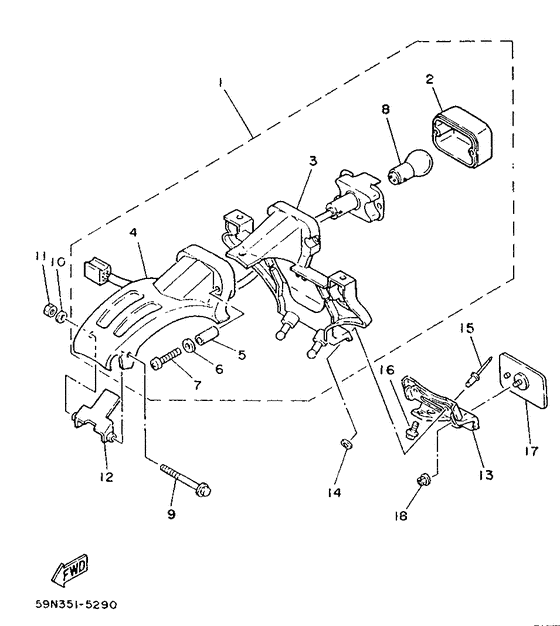

Taillight Diagram Yamaha TY250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 59N
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
59N-84500-00-00
Taillight Assy
|
59N-84500-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
434-84521-69-00 Lens, Taillight |
434-84521-69-00 |
from US $22.90 |
||
|
03
|
03
53Y-84551-00-00
Bracket, Licence
|
53Y-84551-00-00 |
— | ||
|
04
|
04
53Y-84527-00-00
Damper
|
53Y-84527-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
29W-84557-00-00
303 Collar
|
29W-84557-00-00 |
— | ||
|
06
|
06
92906-04200-00 Washer |
92906-04200-00 |
from US $1.56 |
||
| replacement | |||||
|
06
|
06
92907-04200-00 Washer |
92907-04200-00 |
from US $1.56 |
||
|
07
|
07
98506-04030-00 Screw,pan Head |
98506-04030-00 |
US $2.13 |
||
| replacement | |||||
|
07
|
07
985-17040-30-00
Screw, Pan Head(1Ke)
|
985-17040-30-00 |
— | ||
|
08
|
08
1M8-84514-41-00
Bulb
|
1M8-84514-41-00 |
— | ||
|
09
|
09
95806-06065-00 Bolt, Flange |
95806-06065-00 |
US $1.42 |
||
| replacement | |||||
|
09
|
09
95817-06065-00 Bolt, Flange |
95817-06065-00 |
from US $1.42 |
||
|
10
|
10
929-06062-00-00
Washer
|
929-06062-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
11
|
11
95306-06800-00 Nut |
95306-06800-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
95307-06800-00 Nut |
95307-06800-00 |
from US $1.56 |
||
|
12
|
12
53Y-84519-00-00
Bracket, Taillight
|
53Y-84519-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
53Y-21641-00-00
Bracket, Reflector
|
53Y-21641-00-00 |
— | ||
|
14
|
14
90201-044A2-00 Washer, Plate |
90201-044A2-00 |
from US $1.82 |
||
| replacement | |||||
|
14
|
14
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
15
|
15
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
16
|
16
95826-06012-00 Bolt, Flange |
95826-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
17
|
17
3G1-85130-01-00
Rear Reflector Assy
|
3G1-85130-01-00 |
— | ||
| replacement | |||||
|
17
|
17
4KM-85130-00-00 Rear Reflector Assy |
4KM-85130-00-00 |
from US $13.18 |
||
|
18
|
18
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
18
|
18
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
