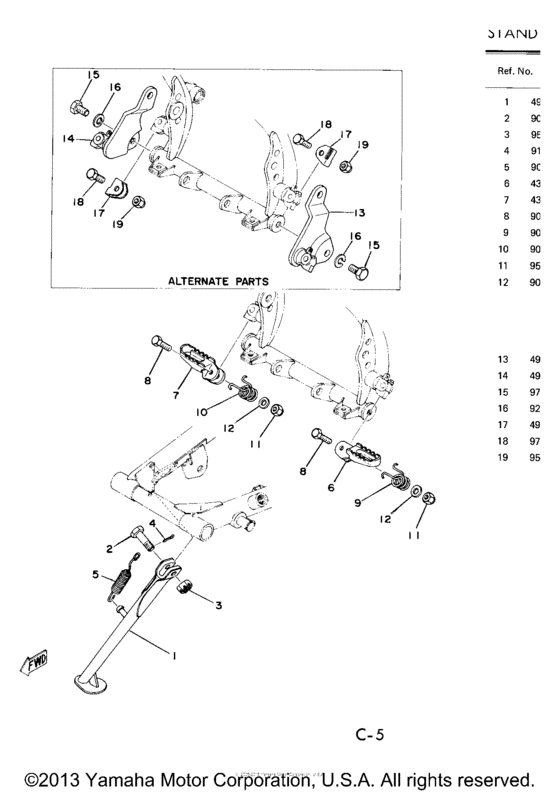

Stand - footrest Diagram Yamaha TY250
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
493-27311-00-35
Stand, Side
|
493-27311-00-35 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
90102-10006-00 Bolt, With Hole (278-27317-00)278-27317-00 |
90102-10006-00 |
from US $8.64 |
||
|
3
|
3
953-03109-00-00 Nut, Castle |
953-03109-00-00 |
from US $5.29 |
||
| replacement | |||||
|
3
|
3
953-07109-00-00 Nut, Castle |
953-07109-00-00 |
from US $4.11 |
||
|
4
|
4
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
5
|
5
90507-29008-00 Spring, Tension |
90507-29008-00 |
from US $17.28 |
||
|
6
|
6
434-27411-00-35
Footrest 1
|
434-27411-00-35 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
434-27421-00-35
Footrest 2
|
434-27421-00-35 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
90101-08250-00
Bolt
|
90101-08250-00 |
— | ||
|
9
|
9
905-08261-38-00
Spring, Torsion
|
905-08261-38-00 |
— | ||
|
10
|
10
905-08261-39-00
Spring, Torsion
|
905-08261-39-00 |
— | ||
|
11
|
11
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
11
|
11
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
12
|
12
90201-08452-00 Washer (8A7) |
90201-08452-00 |
from US $1.39 |
||
|
13
|
13
493-27412-10-00
Bracket, Footrest 1
ALTERNATE PARTS |
493-27412-10-00 |
— | ||
|
14
|
14
493-27422-10-00
Bracket, Footrest 2
ALTERNATE PARTS |
493-27422-10-00 |
— | ||
|
15
|
15
973-01100-13-00 New Genuine PartIN PRICE BOOK ALTERNATE PARTS |
973-01100-13-00 |
US $4.53 |
||
|
16
|
16
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
17
|
17
493-27413-10-00
Cover, Footrest
|
493-27413-10-00 |
— | ||
|
18
|
18
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
18
|
18
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
18
|
18
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
18
|
18
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
19
|
19
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
19
|
19
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
