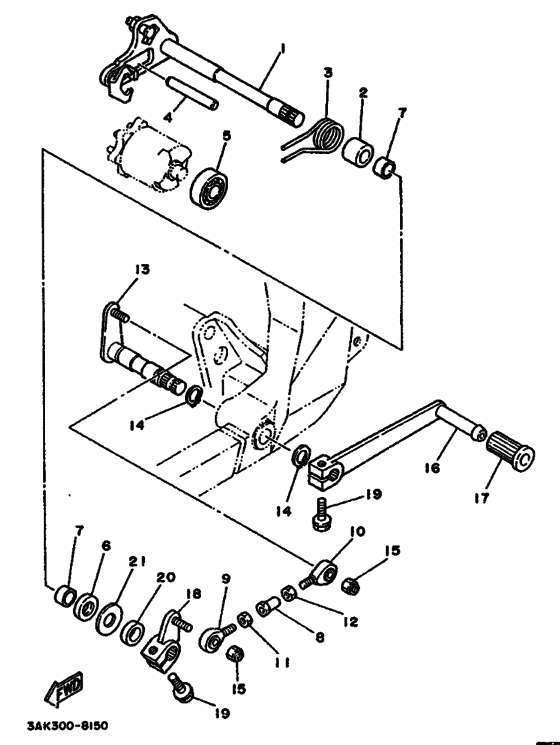

Shift shaft Diagram Yamaha TZ250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3AK1
- Sales region
- Europe (020)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3AK-18101-00-00
Shift Shaft Assy
|
3AK-18101-00-00 |
— | ||
| replacements | |||||
|
1
|
1
3LC-18101-01-00
Shift Shaft Assy
|
3LC-18101-01-00 |
— | ||
|
1
|
1
3LC-18101-00-00
Shift Shaft Assy
|
3LC-18101-00-00 |
— | ||
|
2
|
2
90560-12171-00
Spacer
|
90560-12171-00 |
— | ||
|
3
|
3
90508-32318-00 Spring,torsion |
90508-32318-00 |
from US $3.85 |
||
| replacement | |||||
|
3
|
3
90508-320A6-00 Spring, Torsion |
90508-320A6-00 |
from US $6.23 |
||
|
4
|
4
93608-50158-00 Pin, Dowel |
93608-50158-00 |
from US $4.39 |
||
|
5
|
5
93306-00105-00 Bearing |
93306-00105-00 |
from US $9.44 |
||
|
6
|
6
93109-12012-00 Oil Seal |
93109-12012-00 |
from US $10.87 |
||
|
7
|
7
90383-12013-00 Bush, Formed |
90383-12013-00 |
from US $4.68 |
||
|
8
|
8
5F7-18115-00-00
Rod, Shift
|
5F7-18115-00-00 |
— | ||
|
9
|
9
5F7-18116-00-00 Joint, Rod 1 |
5F7-18116-00-00 |
from US $70.51 |
||
|
10
|
10
5F7-18117-00-00
Joint, Rod 2
|
5F7-18117-00-00 |
— | ||
|
11
|
11
953-03067-00-00
Nut
|
953-03067-00-00 |
— | ||
| replacements | |||||
|
11
|
11
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
11
|
11
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
12
|
12
90170-62228-00
Nut
|
90170-62228-00 |
— | ||
|
13
|
13
3AK-18169-00-00
Arm, Shift 2
|
3AK-18169-00-00 |
— | ||
| replacement | |||||
|
13
|
13
3AK-18169-01-00
Arm, Shift 2
|
3AK-18169-01-00 |
— | ||
|
14
|
14
990-09124-00-00 Circlip |
990-09124-00-00 |
from US $1.66 |
||
|
15
|
15
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
17
|
17
4A0-18113-00-00 Cover, Shift Pedal |
4A0-18113-00-00 |
from US $7.37 |
||
| replacement | |||||
|
17
|
17
240-18113-00-00 Cover, Shift Pedal |
240-18113-00-00 |
from US $7.37 |
||
|
18
|
18
3AK-18112-00-00
Arm, Shift
|
3AK-18112-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
970-16060-20-00
Bolt(84J)
|
970-16060-20-00 |
— | ||
| replacement | |||||
|
19
|
19
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
20
|
20
90560-12337-00
Spacer
|
90560-12337-00 |
— | ||
|
21
|
21
90201-12588-00 Washer, Plate |
90201-12588-00 |
from US $1.70 |
||
