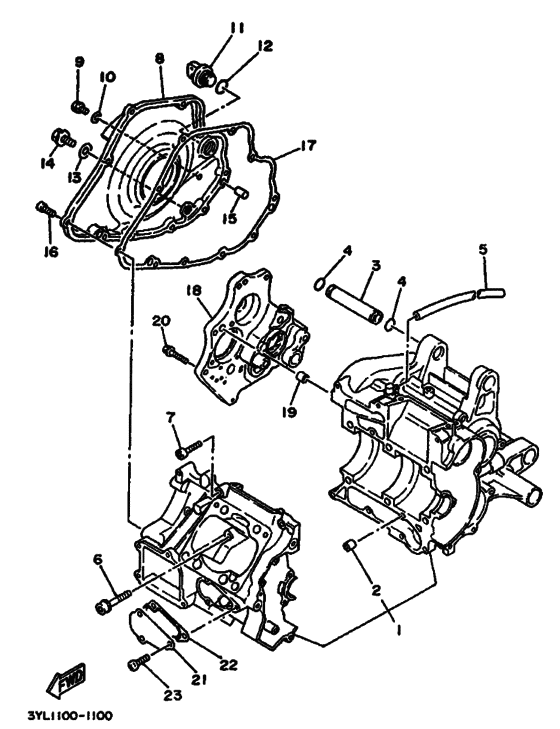

Crankcase Diagram Yamaha TZ250
- Year
- 1991
- Colour
- White (WW; 0036)
- Model code
- 3YL1
- Sales region
- Europe (030)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3YL-15100-00-00
Crankcase Assy
|
3YL-15100-00-00 |
— | ||
| replacements | |||||
|
1
|
1
3YL-15100-02-00
Crankcase Assy
|
3YL-15100-02-00 |
— | ||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
1
|
1
3YL-15100-01-00
Crankcase Assy
|
3YL-15100-01-00 |
— | ||
|
2
|
2
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
2
|
2
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
2
|
2
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
3
|
3
3YL-15327-00-00 Spacer, Engine Mount |
3YL-15327-00-00 |
US $55.46 |
||
| replacement | |||||
|
3
|
3
3YL-15327-01-00 Spacer, Engine Mount |
3YL-15327-01-00 |
US $55.21 |
||
|
4
|
4
93210-15680-00 O-Ring |
93210-15680-00 |
US $3.20 |
||
|
5
|
5
90445-09496-00 Hose (L685) |
90445-09496-00 |
from US $16.86 |
||
| replacement | |||||
|
5
|
5
90445-090G9-00 Hose (L685) |
90445-090G9-00 |
from US $16.86 |
||
|
6
|
6
90109-084F1-00 Bolt |
90109-084F1-00 |
from US $7.81 |
||
|
7
|
7
91311-06030-00 Bolt, Hexagon Socket Head |
91311-06030-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
91314-06030-00 Bolt, Hexagon Socket Head |
91314-06030-00 |
from US $1.42 |
||
|
8
|
8
3YL-15421-00-00
Cover, Crankcase 2
|
3YL-15421-00-00 |
— | ||
|
9
|
9
90338-06041-00 Plug |
90338-06041-00 |
from US $9.49 |
||
|
10
|
10
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.39 |
||
|
11
|
11
4AO-15363-00-00
Plug, Oil
|
4AO-15363-00-00 |
— | ||
|
12
|
12
932-10211-90-00 O-Ring |
932-10211-90-00 |
from US $1.81 |
||
|
13
|
13
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
|
14
|
14
90109-127A3-00
Bolt
|
90109-127A3-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
995-10080-12-00
Pin, Dowel
|
995-10080-12-00 |
— | ||
| replacement | |||||
|
15
|
15
91808-12024-00 Pin, Dowel |
91808-12024-00 |
from US $1.84 |
||
|
16
|
16
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
16
|
16
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
17
|
17
3YL-15461-00-00 Gasket, Crankcase Cover 2 |
3YL-15461-00-00 |
from US $24.79 |
||
| replacement | |||||
|
17
|
17
3YL-15461-01-00 Gasket, Crankcase Cover 2 |
3YL-15461-01-00 |
from US $24.79 |
||
|
18
|
18
3XV-15131-00-00
Crankcase 3
|
3XV-15131-00-00 |
— | ||
| replacement | |||||
|
18
|
18
3XV-15131-01-00
Crankcase 3
|
3XV-15131-01-00 |
— | ||
|
19
|
19
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
19
|
19
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
19
|
19
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
20
|
20
90109-065F8-00 Bolt |
90109-065F8-00 |
from US $2.59 |
||
|
21
|
21
3XV-15431-00-00
Cover, Crankcase 3
|
3XV-15431-00-00 |
— | ||
|
22
|
22
3XV-15462-00-00
Gasket, Crankcase Cover 3
|
3XV-15462-00-00 |
— | ||
|
23
|
23
92011-06014-00 Screw |
92011-06014-00 |
from US $1.56 |
||
| replacement | |||||
|
23
|
23
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.70 |
||
