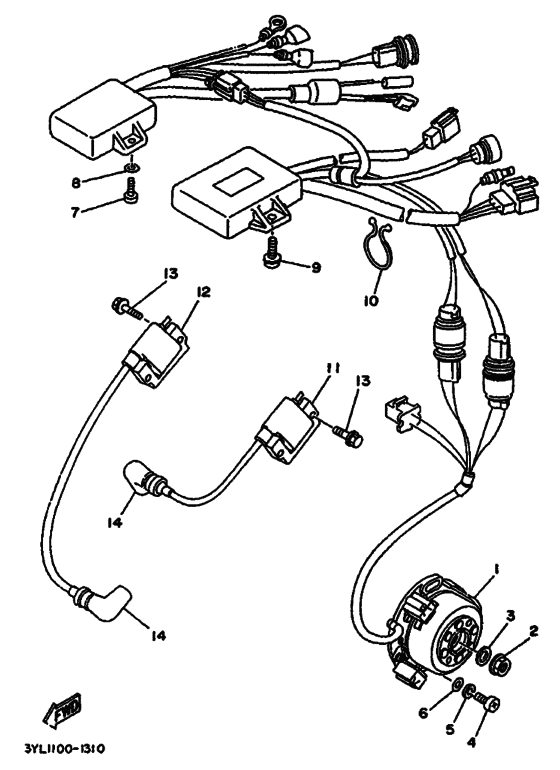

Generator Diagram Yamaha TZ250
- Year
- 1991
- Colour
- White (WW; 0036)
- Model code
- 3YL1
- Sales region
- Europe (030)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3YL-85501-00-00
C.d.i. Magneto Set
|
3YL-85501-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
90179-12335-00 Nut, Specl Shape |
90179-12335-00 |
from US $10.21 |
||
|
3
|
3
90201-127E1-00 Washer, Plate |
90201-127E1-00 |
from US $1.70 |
||
| replacement | |||||
|
3
|
3
90201-125L6-00 Washer, Plate(1Re) |
90201-125L6-00 |
from US $1.84 |
||
|
4
|
4
98501-06020-00 Screw, Pan Head(3Bc) |
98501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
5
|
5
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
6
|
6
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
6
|
6
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
7
|
7
98501-06020-00 Screw, Pan Head(3Bc) |
98501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
8
|
8
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
8
|
8
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
8
|
8
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
9
|
9
950-26060-25-00
Bolt, Flange
|
950-26060-25-00 |
— | ||
| replacements | |||||
|
9
|
9
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
9
|
9
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
|
10
|
10
90464-30040-00 Clamp |
90464-30040-00 |
from US $1.84 |
||
|
11
|
11
3YL-82310-00-00
Ignition Coil Assy
L 260 |
3YL-82310-00-00 |
— | ||
| replacements | |||||
|
11
|
11
4DP-82320-00-00
Ignition Coil Assy
L 260 |
4DP-82320-00-00 |
— | ||
|
11
|
11
3YL-82320-00-00
Ignition Coil Assy
L 260 |
3YL-82320-00-00 |
— | ||
|
11
|
11
3YL-82320-01-00
Ignition Coil Assy
L 260 |
3YL-82320-01-00 |
— | ||
|
12
|
12
3YL-82320-00-00
Ignition Coil Assy
L 360 |
3YL-82320-00-00 |
— | ||
|
13
|
13
95023-06020-00 Bolt, Flg.(Small Head) |
95023-06020-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
95024-06020-00 Bolt, Flange (Small Head) |
95024-06020-00 |
from US $1.66 |
||
|
14
|
14
2TV-82370-00-00
Plug Cap Assembly
WITH NOISE SUPPRESSOR |
2TV-82370-00-00 |
— | ||
| replacement | |||||
|
14
|
14
8DG-82370-00-00 Plug Cap AssyWITH NOISE SUPPRESSOR |
8DG-82370-00-00 |
from US $28.34 |
||
