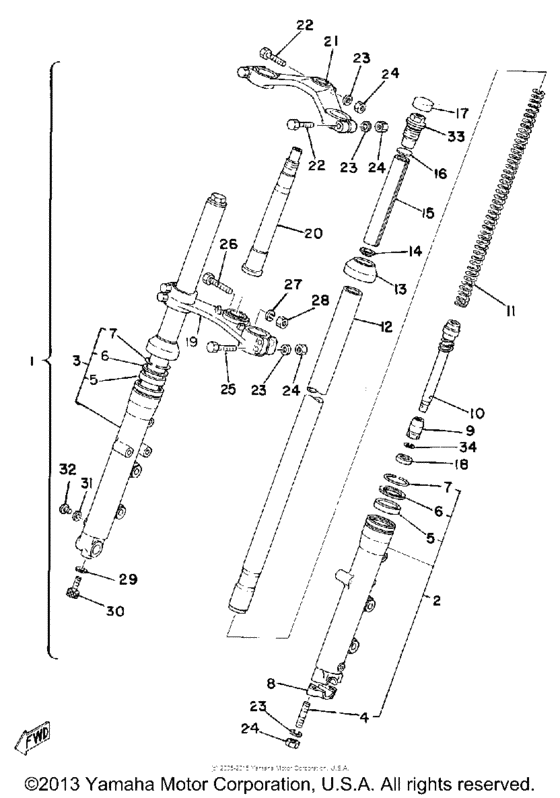

Front fork Diagram Yamaha TZ250
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 250
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3G2-23101-01-00
Front Fork Assembly
|
3G2-23101-01-00 |
— | ||
|
2
|
2
3G2-23126-01-00
Tube, Outer 1
|
3G2-23126-01-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
3G2-23136-01-00
Tube, Outer 2
|
3G2-23136-01-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
90116-08261-00 Bolt, Stud |
90116-08261-00 |
from US $1.33 |
||
|
5
|
5
4G0-23145-00-00 Oil Seal |
4G0-23145-00-00 |
from US $27.52 |
||
|
6
|
6
341-23146-50-00 Washer, Oil Seal |
341-23146-50-00 |
from US $10.58 |
||
|
7
|
7
341-23156-50-00 Clip, Oil Seal |
341-23156-50-00 |
from US $19.69 |
||
|
8
|
8
341-23167-50-00 Holder, Axle |
341-23167-50-00 |
from US $46.97 |
||
|
9
|
9
3G2-23173-00-00
Spindle, Taper
|
3G2-23173-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
3G2-23170-01-00
Cylinder, Frtfrk
|
3G2-23170-01-00 |
— | ||
|
11
|
11
3G2-23141-02-00
Spring, Front Fork
|
3G2-23141-02-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
3G2-23124-00-00
Tube, Inner 1
|
3G2-23124-00-00 |
— | ||
|
13
|
13
1T3-23144-50-00 Seal, Dust |
1T3-23144-50-00 |
from US $32.09 |
||
|
14
|
14
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
15
|
15
11H-23118-00-00
Spacer
|
11H-23118-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
2H7-23149-00-00
Washer, Spring Upr
|
2H7-23149-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
2F0-23168-00-00
Cap, Front Fork
|
2F0-23168-00-00 |
— | ||
|
18
|
18
3G2-23184-00-00
Cap, Air Valve
|
3G2-23184-00-00 |
— | ||
|
19
|
19
3G2-23340-00-00
Under Bracket
|
3G2-23340-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
3G2-23341-00-00
Shaft, Steering
|
3G2-23341-00-00 |
— | ||
|
21
|
21
1H3-23435-00-00
Crown, Handle
|
1H3-23435-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
90101-08263-00
Bolt
|
90101-08263-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
24
|
24
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
24
|
24
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
25
|
25
97281-08055-00
Bolt, Flat Head
|
97281-08055-00 |
— | ||
|
26
|
26
322-23356-00-00
Bolt 2
|
322-23356-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
27
|
27
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
27
|
27
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
28
|
28
322-23357-00-00
Nut
|
322-23357-00-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
30
|
30
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
30
|
30
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
31
|
31
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
32
|
32
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
32
|
32
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
32
|
32
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
32
|
32
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
33
|
33
3G2-23111-00-00
Bolt, Cap
|
3G2-23111-00-00 |
— | ||
| replacement | |||||
|
33
|
33
5F7-23111-00-00
Bolt, Cap
|
5F7-23111-00-00 |
— | ||
|
34
|
34
3G2-23183-00-00 Circlip |
3G2-23183-00-00 |
US $3.12 |
||
