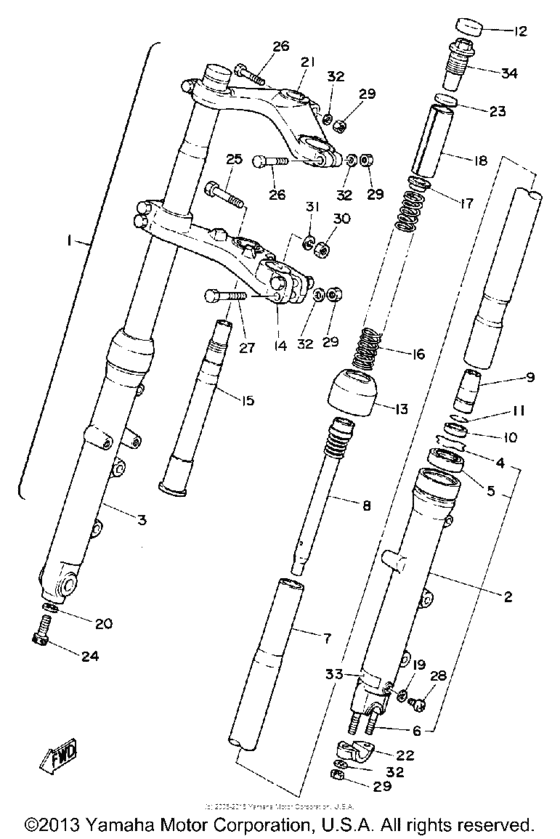

Front fork Diagram Yamaha TZ250
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 250
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4A1-23101-00-00
Front Fork Assembly
|
4A1-23101-00-00 |
— | ||
|
2
|
2
4A1-23126-00-00
Tube, Outer 1
|
4A1-23126-00-00 |
— | ||
|
3
|
3
4A1-23136-00-00
Tube, Outer 2
|
4A1-23136-00-00 |
— | ||
|
4
|
4
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
5
|
5
49A-23145-00-00 Oil Seal |
49A-23145-00-00 |
from US $15.44 |
||
| replacement | |||||
|
5
|
5
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
6
|
6
90116-08261-00 Bolt, Stud |
90116-08261-00 |
from US $1.33 |
||
|
7
|
7
4A1-23124-00-00
Tube, Inner 1
|
4A1-23124-00-00 |
— | ||
|
8
|
8
4A1-23170-00-00
Cylinder, Frtfrk
|
4A1-23170-00-00 |
— | ||
|
9
|
9
3G2-23173-00-00
Spindle, Taper
|
3G2-23173-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
3G2-23184-00-00
Cap, Air Valve
|
3G2-23184-00-00 |
— | ||
|
11
|
11
3G2-23183-00-00 Circlip |
3G2-23183-00-00 |
US $3.12 |
||
|
12
|
12
2F0-23168-00-00
Cap, Front Fork
|
2F0-23168-00-00 |
— | ||
|
13
|
13
583-23144-00-00
Seal, Dust
|
583-23144-00-00 |
— | ||
|
14
|
14
4A1-23340-00-00
Under Bracket
|
4A1-23340-00-00 |
— | ||
|
15
|
15
3G2-23341-00-00
Shaft, Steering
|
3G2-23341-00-00 |
— | ||
|
16
|
16
3G2-23141-02-00
Spring, Front Fork
|
3G2-23141-02-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
18
|
18
11H-23118-00-00
Spacer
|
11H-23118-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
20
|
20
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
21
|
21
1H3-23435-00-00
Crown, Handle
|
1H3-23435-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
341-23167-50-00 Holder, Axle |
341-23167-50-00 |
from US $46.97 |
||
|
23
|
23
2H7-23149-00-00
Washer, Spring Upr
|
2H7-23149-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
24
|
24
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
25
|
25
322-23356-00-00
Bolt 2
|
322-23356-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
90101-08263-00
Bolt
|
90101-08263-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
97281-08055-00
Bolt, Flat Head
|
97281-08055-00 |
— | ||
|
28
|
28
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
28
|
28
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
28
|
28
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
28
|
28
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
29
|
29
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
29
|
29
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
30
|
30
322-23357-00-00
Nut
|
322-23357-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
31
|
31
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
31
|
31
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
32
|
32
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
32
|
32
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
33
|
33
1T3-23197-50-00
Label, Caution 3
|
1T3-23197-50-00 |
— | ||
|
34
|
34
3G2-23111-00-00
Bolt, Cap
|
3G2-23111-00-00 |
— | ||
| replacement | |||||
|
34
|
34
5F7-23111-00-00
Bolt, Cap
|
5F7-23111-00-00 |
— | ||
