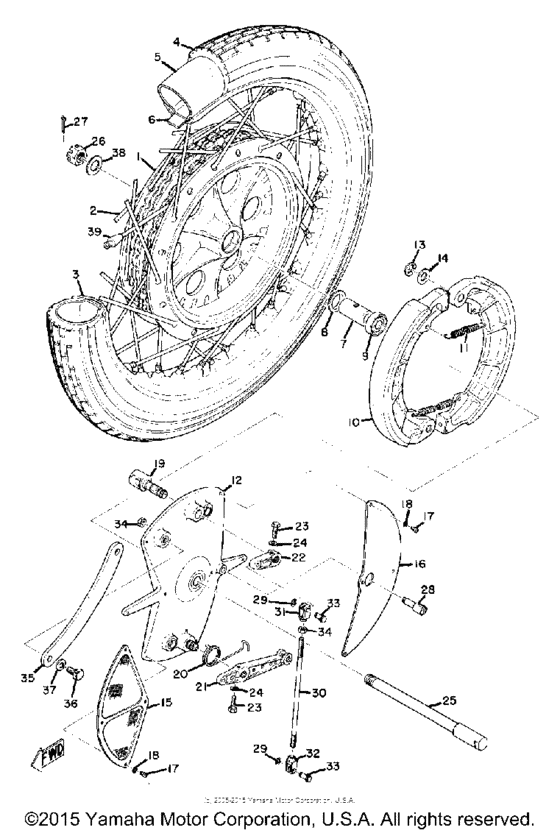

Front wheel Diagram Yamaha TZ350
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 350
- Model
- TZ350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
240-25111-00-00
Hub, Front
|
240-25111-00-00 |
— | ||
|
2
|
2
240-25104-00-00
Spoke Set, Front
|
240-25104-00-00 |
— | ||
|
3
|
3
944-16180-43-00
Rim 1.60X18
1.60X18 |
944-16180-43-00 |
— | ||
|
3
|
3
944-18180-47-00
Rim 1.85X18
1.85X18 |
944-18180-47-00 |
— | ||
|
5
|
5
94230-18084-00 Tube (3.00-18) |
94230-18084-00 |
US $27.38 |
||
| replacement | |||||
|
5
|
5
94227-18195-00 Tube |
94227-18195-00 |
US $37.53 |
||
|
5
|
5
94227-18010-00
Tube
|
94227-18010-00 |
— | ||
| replacement | |||||
|
5
|
5
94227-18195-00 Tube |
94227-18195-00 |
US $37.53 |
||
|
6
|
6
94325-18043-00 Band, Rim (538)2.50-18 |
94325-18043-00 |
from US $4.39 |
||
| replacement | |||||
|
6
|
6
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.72 |
||
|
7
|
7
90560-15290-00 Spacer |
90560-15290-00 |
from US $7.37 |
||
|
8
|
8
146-25116-00-00 Flange, Spacer 2 |
146-25116-00-00 |
from US $4.53 |
||
|
9
|
9
933-06202-04-00 Bearing |
933-06202-04-00 |
from US $12.06 |
||
|
10
|
10
240-25130-00-00
Brake Shoe
|
240-25130-00-00 |
— | ||
|
11
|
11
240-25133-00-00
Spring, Return
|
240-25133-00-00 |
— | ||
|
12
|
12
240-25169-00-00
Plate, Brake Shoe 2
|
240-25169-00-00 |
— | ||
|
12
|
12
240-25121-00-00
Plate, Brake Shoe
|
240-25121-00-00 |
— | ||
|
13
|
13
93430-10015-00 Circlip |
93430-10015-00 |
from US $2.41 |
||
|
14
|
14
90201-25286-00 Washer, Plate (341-25147-00) |
90201-25286-00 |
from US $3.40 |
||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
240-25148-00-00
Cover, Suction
|
240-25148-00-00 |
— | ||
|
16
|
16
240-25127-00-00
Cover, Plate
|
240-25127-00-00 |
— | ||
|
17
|
17
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
18
|
18
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
19
|
19
240-25151-00-00
Camshaft
|
240-25151-00-00 |
— | ||
|
20
|
20
905-08200-26-00
Spring, Torsion
|
905-08200-26-00 |
— | ||
|
20
|
20
905-08200-27-00
Spring, Torsion
|
905-08200-27-00 |
— | ||
|
21
|
21
240-25155-00-00
Lever, Camshaft 1
|
240-25155-00-00 |
— | ||
|
22
|
22
240-25156-00-00
Lever, Camshaft 2
|
240-25156-00-00 |
— | ||
|
23
|
23
901-01062-88-00
Bolt, Hexagon (360)
|
901-01062-88-00 |
— | ||
| replacement | |||||
|
23
|
23
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
23
|
23
95201-06020-00
Bolt, Flat Hd.drill
|
95201-06020-00 |
— | ||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
25
|
25
240-25181-00-00
Axle, Wheel
|
240-25181-00-00 |
— | ||
|
26
|
26
901-71150-10-00
Nut, Castle
|
901-71150-10-00 |
— | ||
|
27
|
27
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
27
|
27
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
28
|
28
240-26381-00-00
Holder, Adjusting
|
240-26381-00-00 |
— | ||
|
29
|
29
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.66 |
||
|
30
|
30
240-25161-00-00
Rod, Connecting
|
240-25161-00-00 |
— | ||
|
31
|
31
152-25163-00-00 End, Rod 1 |
152-25163-00-00 |
US $40.01 |
||
|
32
|
32
152-25164-00-00 End, Rod 2 |
152-25164-00-00 |
from US $13.48 |
||
|
33
|
33
90249-06095-00
Pin, Spec'l Shape
|
90249-06095-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
34
|
34
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
35
|
35
328-25171-00-00
Bar, Tension
|
328-25171-00-00 |
— | ||
|
36
|
36
901-03080-05-00
Bolt, Head W/hole
|
901-03080-05-00 |
— | ||
|
37
|
37
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
38
|
38
90201-15239-00
Washer, Plate
|
90201-15239-00 |
— | ||
|
39
|
39
156-25398-00-00
Balancer, Wheel (15G)
15G |
156-25398-00-00 |
— | ||
| replacement | |||||
|
39
|
39
3HT-25398-00-00 Balancer, Wheel (15G)15G |
3HT-25398-00-00 |
from US $8.08 |
||
