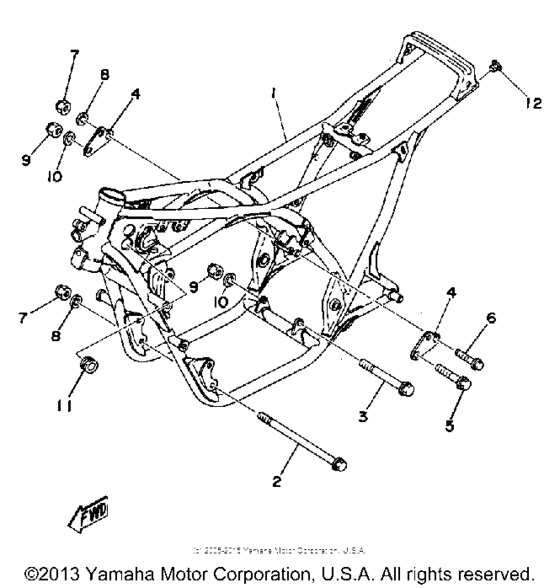

Frame Diagram Yamaha TZ350
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 350
- Model
- TZ350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1H3-21110-00-33
Frame
|
1H3-21110-00-33 |
— | ||
|
1
|
1
1H3-21110-01-33
Frame
|
1H3-21110-01-33 |
— | ||
|
2
|
2
90105-08034-00 Bolt, Washer BasedBolt m8-240l M8-240L |
90105-08034-00 |
US $10.75 |
||
|
3
|
3
901-01103-13-00
Bolt
M10-135L |
901-01103-13-00 |
— | ||
|
3
|
3
1H3-21315-00-00
New Genuine Part
IN PRICE BOOK 2 |
1H3-21315-00-00 |
— | ||
|
5
|
5
958-21100-60-00 Bolt, Flange |
958-21100-60-00 |
from US $2.83 |
||
| replacement | |||||
|
5
|
5
95817-10060-00 Bolt, Flange |
95817-10060-00 |
from US $2.72 |
||
|
6
|
6
95811-08055-00 Bolt, Flange |
95811-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
6
|
6
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
7
|
7
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
7
|
7
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
8
|
8
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
9
|
9
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
10
|
10
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
11
|
11
90480-28191-00 Grommet |
90480-28191-00 |
from US $1.70 |
||
|
12
|
12
904-80190-30-00
Grommet
|
904-80190-30-00 |
— | ||
|
13
|
13
1H3-21316-00-00
Stay, Engine 3
|
1H3-21316-00-00 |
— | ||
|
14
|
14
1H3-21318-00-00
Stay, Engine 5
|
1H3-21318-00-00 |
— | ||
|
15
|
15
1H3-21317-00-00
Stay, Engine 4
|
1H3-21317-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
1H3-21319-00-00
Stay, Engine 6
|
1H3-21319-00-00 |
— | ||
|
17
|
17
958-11080-60-00
Bolt, Flange
|
958-11080-60-00 |
— | ||
| replacement | |||||
|
17
|
17
958-17080-60-00 Bolt, Flange |
958-17080-60-00 |
from US $1.07 |
||
|
18
|
18
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
19
|
19
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
19
|
19
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
20
|
20
1H3-21314-00-00
Stay, Engine 1
|
1H3-21314-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
1H3-21387-00-00
Stay, Engine 7
|
1H3-21387-00-00 |
— | ||
|
22
|
22
95811-08075-00 Bolt, Flange |
95811-08075-00 |
from US $1.98 |
||
| replacement | |||||
|
22
|
22
95817-08075-00 Bolt, Flange |
95817-08075-00 |
from US $2.22 |
||
|
23
|
23
1H3-15361-00-00
Gauge, Level
|
1H3-15361-00-00 |
— | ||
