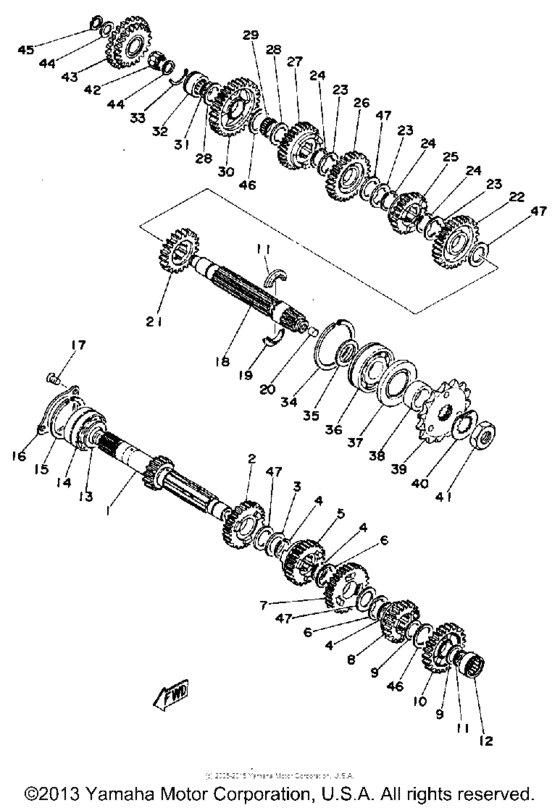

Transmission Diagram Yamaha TZ350
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 350
- Model
- TZ350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
328-17411-00-00
Axle, Main
|
328-17411-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
328-17141-00-00
Gear, 4Th Pinion
4TH PINION |
328-17141-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
4TH PINION |
999-99999-99-00 |
— | ||
|
3
|
3
90201-25490-00 Washer, Plate |
90201-25490-00 |
from US $3.29 |
||
|
4
|
4
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.81 |
||
|
5
|
5
328-17131-00-00
Gear, 3Rd Pinion
3RD PINION |
328-17131-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
3RD PINION |
999-99999-99-00 |
— | ||
|
6
|
6
90209-21105-00 Washer 328172160000 |
90209-21105-00 |
from US $3.38 |
||
|
7
|
7
328-17161-00-00
Gear, 6Th Pinion
6TH PINION |
328-17161-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
6TH PINION |
999-99999-99-00 |
— | ||
|
8
|
8
328-17121-00-00
Gear, 2Nd Pinion
2ND PINION |
328-17121-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
2ND PINION |
999-99999-99-00 |
— | ||
|
9
|
9
90201-20266-00 Washer, Plate |
90201-20266-00 |
from US $1.56 |
||
|
10
|
10
328-17151-00-00
Gear, 5Th Pinion
5TH PINION |
328-17151-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
5TH PINION |
999-99999-99-00 |
— | ||
|
11
|
11
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
12
|
12
933-11220-27-00 Bearing |
933-11220-27-00 |
from US $19.88 |
||
|
13
|
13
168-17428-01-05 Shim 2 (25-34-0.5) |
168-17428-01-05 |
from US $7.24 |
||
|
13
|
13
168-17428-01-03 Shim 2 (25-34-0.3)25-34-0.5 |
168-17428-01-03 |
from US $8.39 |
||
| replacement | |||||
|
13
|
13
168-17428-01-05 Shim 2 (25-34-0.5)25-34-0.5 |
168-17428-01-05 |
from US $7.24 |
||
|
14
|
14
933-05205-02-00 Bearing (93305-20508-00) |
933-05205-02-00 |
from US $42.42 |
||
|
15
|
15
93440-52009-00 Circlip |
93440-52009-00 |
from US $4.38 |
||
|
16
|
16
360-17471-00-00
Plate, Cover
|
360-17471-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
17
|
17
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $2.27 |
||
|
17
|
17
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
|
18
|
18
328-17421-01-00
Axle, Drive
|
328-17421-01-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
156-17429-00-00
Spacer, Drive Axle
|
156-17429-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
90336-09002-00
Plug, Taper
|
90336-09002-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
328-17251-00-00
Gear, 5Th Wheel
5TH WHEEL |
328-17251-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
5TH WHEEL |
999-99999-99-00 |
— | ||
|
22
|
22
328-17221-00-00
Gear, 2Nd Wheel
2ND WHEEL |
328-17221-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
2ND WHEEL |
999-99999-99-00 |
— | ||
|
23
|
23
90209-21105-00 Washer 328172160000 |
90209-21105-00 |
from US $3.38 |
||
|
24
|
24
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.81 |
||
|
25
|
25
328-17261-00-00
Gear, 6Th Wheel
6TH WHEEL |
328-17261-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
6TH WHEEL |
999-99999-99-00 |
— | ||
|
26
|
26
328-17231-00-00
Gear, 3Rd Wheel
3RD WHEEL |
328-17231-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
3RD WHEEL |
999-99999-99-00 |
— | ||
|
27
|
27
328-17241-00-00
Gear, 4Th Wheel
4TH WHEEL |
328-17241-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
4TH WHEEL |
999-99999-99-00 |
— | ||
|
28
|
28
90201-20276-00 Washer, Plate (T=1.0) |
90201-20276-00 |
from US $1.56 |
||
|
29
|
29
93310-22057-00 BearingS |
93310-22057-00 |
from US $15.02 |
||
|
30
|
30
328-17211-00-00
Gear, 1St Wheel
1ST WHEEL |
328-17211-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
1ST WHEEL |
999-99999-99-00 |
— | ||
|
31
|
31
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
32
|
32
93311-42045-00 Bearing |
93311-42045-00 |
from US $19.42 |
||
|
33
|
33
278-17425-00-00 Circlip 2 |
278-17425-00-00 |
from US $2.70 |
||
|
34
|
34
168-17428-01-05 Shim 2 (25-34-0.5) |
168-17428-01-05 |
from US $7.24 |
||
|
34
|
34
168-17428-01-03 Shim 2 (25-34-0.3)25-34-0.5 |
168-17428-01-03 |
from US $8.39 |
||
| replacement | |||||
|
34
|
34
168-17428-01-05 Shim 2 (25-34-0.5)25-34-0.5 |
168-17428-01-05 |
from US $7.24 |
||
|
35
|
35
278-17424-01-00 Circlip 1 |
278-17424-01-00 |
from US $4.38 |
||
|
36
|
36
933-06305-06-00 Bearing (B6305N) |
933-06305-06-00 |
US $52.88 |
||
| replacement | |||||
|
36
|
36
93306-30504-00 Bearing |
93306-30504-00 |
from US $18.14 |
||
|
37
|
37
931-02351-09-00 Oil Seal (Sd-35-62-6 Hs) |
931-02351-09-00 |
from US $9.15 |
||
|
38
|
38
90387-25192-00 Collar |
90387-25192-00 |
from US $15.27 |
||
| replacements | |||||
|
38
|
38
90387-253M9-00 Collar |
90387-253M9-00 |
from US $21.11 |
||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
938-3E150-83-00
Sprocket, Drive
|
938-3E150-83-00 |
— | ||
|
39
|
39
938-3E171-22-00
Sprocket, Drive
|
938-3E171-22-00 |
— | ||
|
39
|
39
170-17461-60-00
Sprocket, Drive
|
170-17461-60-00 |
— | ||
| replacement | |||||
|
39
|
39
938-3E161-05-00
Sprocket,drive 16T(1701746160)
|
938-3E161-05-00 |
— | ||
|
40
|
40
902-15210-22-00
Washer, Lock
|
902-15210-22-00 |
— | ||
| replacement | |||||
|
40
|
40
902-15212-90-00 Washer, Lock |
902-15212-90-00 |
from US $7.63 |
||
|
41
|
41
90179-18020-00 Nut |
90179-18020-00 |
from US $5.40 |
||
|
42
|
42
93310-21564-00
Bearing, Cylinder.#10
|
93310-21564-00 |
— | ||
| replacement | |||||
|
42
|
42
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
43
|
43
278-15650-00-00
Idle Gear Assembly
|
278-15650-00-00 |
— | ||
| replacement | |||||
|
43
|
43
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
44
|
44
90201-154E8-00 Washer, Plate (4L0) |
90201-154E8-00 |
from US $1.84 |
||
|
45
|
45
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.18 |
||
|
46
|
46
156-17417-00-01
Shim 1
|
156-17417-00-01 |
— | ||
|
46
|
46
156-17417-00-02
Shim 1 (25.1-31-0.2)
25.1-31-0.2 |
156-17417-00-02 |
— | ||
|
46
|
46
156-17417-00-03
Shim 1
|
156-17417-00-03 |
— | ||
|
47
|
47
328-17427-00-03
Shim 1
|
328-17427-00-03 |
— | ||
|
47
|
47
328-17427-00-01
Shim 1
|
328-17427-00-01 |
— | ||
|
47
|
47
328-17427-00-02
Shim 1
|
328-17427-00-02 |
— | ||
