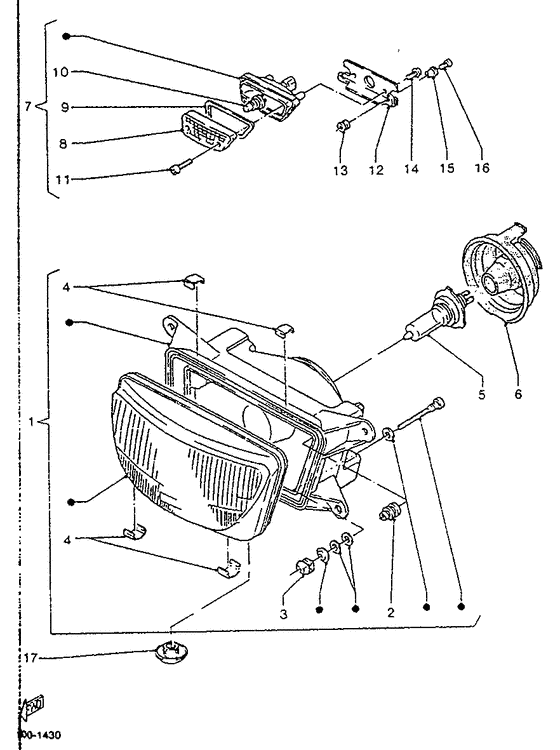

Headlight Diagram Yamaha TZR125
- Year
- 1992
- Colour
- Silky White (SW; 00GE)
- Model code
- 4DL1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 125
- Model
- TZR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3HE-84320-40-00 Lens Assy |
3HE-84320-40-00 |
US $153.46 |
||
|
02
|
02
51L-8431U-00-00
Holder
|
51L-8431U-00-00 |
— | ||
| replacement | |||||
|
02
|
02
3AJ-8431U-00-00 Holder |
3AJ-8431U-00-00 |
from US $8.93 |
||
|
03
|
03
51L-84334-00-00 Nut, Adjusting |
51L-84334-00-00 |
from US $10.55 |
||
|
04
|
04
3MA-8413H-00-00
Plate, Spring
|
3MA-8413H-00-00 |
— | ||
|
05
|
05
2L2-84314-20-00
Bulb, Headlight
Ur yellow lamp |
2L2-84314-20-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
Ur yellow lamp |
999-99999-99-00 |
— | ||
|
06
|
06
36Y-84397-00-00 Cover, Socket |
36Y-84397-00-00 |
from US $21.82 |
||
|
07
|
07
3GM-84301-00-00 Pilot Light Assy 1 |
3GM-84301-00-00 |
from US $56.66 |
||
| replacement | |||||
|
07
|
07
3GM-84301-01-00 Pilot Light Assy 1 |
3GM-84301-01-00 |
from US $56.23 |
||
|
08
|
08
3GM-84321-00-00 Lens Assy |
3GM-84321-00-00 |
from US $6.23 |
||
|
09
|
09
3GM-84322-00-00
Gasket, Lens
|
3GM-84322-00-00 |
— | ||
| replacement | |||||
|
09
|
09
1TX-83313-00-00
Gasket, Flshr Lens
|
1TX-83313-00-00 |
— | ||
|
10
|
10
2JE-84744-00-00 Bulb (12V-5W) |
2JE-84744-00-00 |
from US $2.83 |
||
| replacements | |||||
|
10
|
10
4SV-84347-00-00 Bulb (12V-5W) |
4SV-84347-00-00 |
from US $3.05 |
||
|
10
|
10
1WD-H4744-00-00 Bulb (12V-5W) |
1WD-H4744-00-00 |
from US $6.23 |
||
|
10
|
10
1RC-84347-00-00 Bulb (12V-5W) |
1RC-84347-00-00 |
from US $5.41 |
||
|
10
|
10
1JD-H4347-00-00 Bulb (W3W-12V) |
1JD-H4347-00-00 |
US $4.68 |
||
|
10
|
10
3WW-H4347-00-00
Bulb
|
3WW-H4347-00-00 |
— | ||
|
11
|
11
3GM-84192-00-00
Screw(M4,l=12)
|
3GM-84192-00-00 |
— | ||
|
12
|
12
3GM-8431R-00-00
Stay, Setting
|
3GM-8431R-00-00 |
— | ||
|
13
|
13
90480-10517-00 Grommet |
90480-10517-00 |
from US $1.98 |
||
|
14
|
14
90167-05041-00 Screw, Truss Head Tapping |
90167-05041-00 |
from US $1.28 |
||
| replacement | |||||
|
14
|
14
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
15
|
15
90387-04001-00 Collar |
90387-04001-00 |
from US $8.64 |
||
|
16
|
16
97786-04020-00
Screw, Tapping
|
97786-04020-00 |
— | ||
|
17
|
17
4DL-H4397-00-00
Cover, Socket
|
4DL-H4397-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
