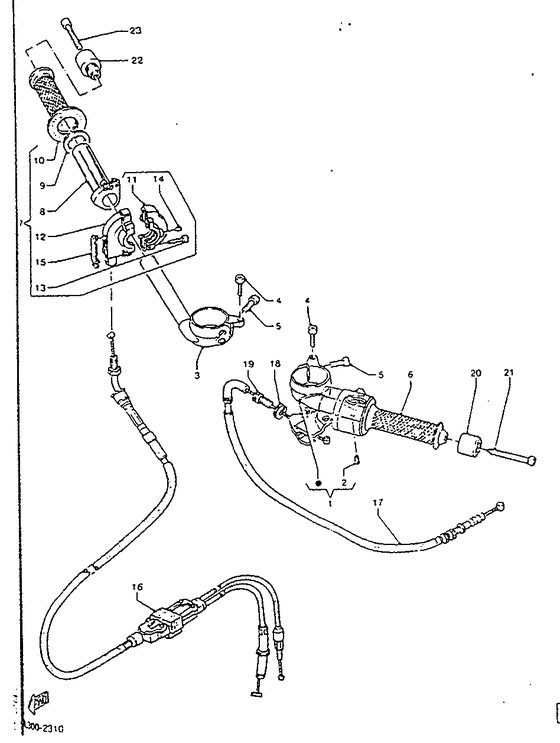

Steering handle & cable Diagram Yamaha TZR125
- Year
- 1992
- Colour
- Silky White (SW; 00GE)
- Model code
- 4DL1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 125
- Model
- TZR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4DL-F6121-10-00
Handlebar (Left)
|
4DL-F6121-10-00 |
— | ||
|
02
|
02
91600-50020-00
Pin, Spring
|
91600-50020-00 |
— | ||
|
03
|
03
4DL-F6122-10-00
Handlebar (Right)
|
4DL-F6122-10-00 |
— | ||
|
04
|
04
90110-06022-00 Bolt, Hexagon Socket Head |
90110-06022-00 |
from US $1.56 |
||
| replacement | |||||
|
04
|
04
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.66 |
||
|
05
|
05
91311-06020-00 Bolt, Hexagon Socket Head |
91311-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
05
|
05
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.39 |
||
|
06
|
06
4DL-F6241-00-00
Grip
|
4DL-F6241-00-00 |
— | ||
|
07
|
07
4DL-F6240-00-00
Grip Assy
|
4DL-F6240-00-00 |
— | ||
|
08
|
08
4DL-F6243-00-00
Tube, Throttle Guide
|
4DL-F6243-00-00 |
— | ||
|
09
|
09
4DL-F6249-00-00
Ring, Leaf
|
4DL-F6249-00-00 |
— | ||
| replacement | |||||
|
09
|
09
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
4DL-F6242-00-00
Grip (Right)
|
4DL-F6242-00-00 |
— | ||
|
11
|
11
4DL-F6282-00-00
Cap, Grip Lower
|
4DL-F6282-00-00 |
— | ||
|
12
|
12
4DL-F6281-00-00
Cap, Grip Upper
|
4DL-F6281-00-00 |
— | ||
|
13
|
13
90110-05018-00 Bolt, Hexagon Socket Head |
90110-05018-00 |
from US $1.70 |
||
|
14
|
14
4DL-F629E-00-00
Stopper
|
4DL-F629E-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
4DL-F628H-00-00
Cap, Wire
|
4DL-F628H-00-00 |
— | ||
|
16
|
16
4DL-F6302-00-00
Throttle Cable Assy
|
4DL-F6302-00-00 |
— | ||
| replacement | |||||
|
16
|
16
4DL-F6302-01-00
Throttle Cable Assy
|
4DL-F6302-01-00 |
— | ||
|
17
|
17
4DL-F6335-00-00
Cable, clutch
|
4DL-F6335-00-00 |
— | ||
|
18
|
18
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
18
|
18
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
19
|
19
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
19
|
19
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
20
|
20
4DL-F6246-00-00
End, Grip
|
4DL-F6246-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
91316-08060-00 Bolt,socket HeadBolt,hexagon socket head |
91316-08060-00 |
from US $5.10 |
||
| replacement | |||||
|
21
|
21
91317-08060-00 Bolt, Socket |
91317-08060-00 |
from US $5.10 |
||
|
22
|
22
4DL-F6246-00-00
End, Grip
|
4DL-F6246-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
91316-08060-00 Bolt,socket HeadBolt,hexagon socket head |
91316-08060-00 |
from US $5.10 |
||
| replacement | |||||
|
23
|
23
91317-08060-00 Bolt, Socket |
91317-08060-00 |
from US $5.10 |
||
