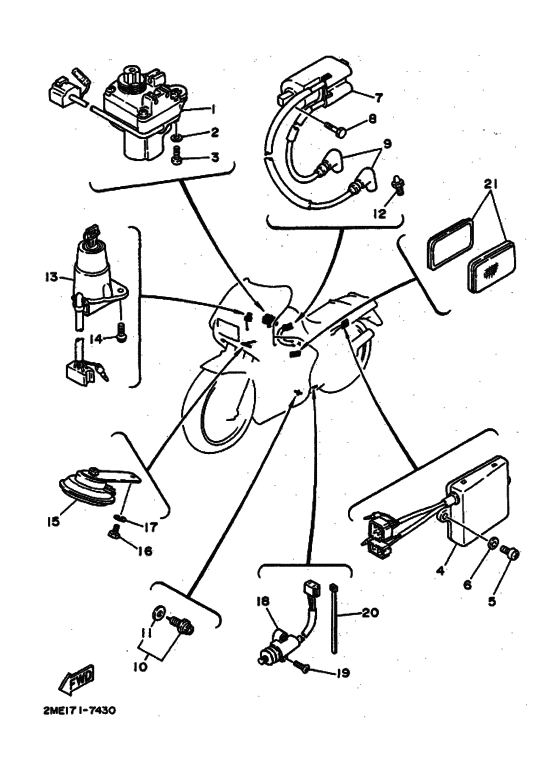

Electrical 2 Diagram Yamaha TZR250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 2XU1
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TZR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1KT-85820-01-00
Servo Motor Assy
|
1KT-85820-01-00 |
— | ||
|
2
|
2
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
2
|
2
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
3
|
3
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
4
|
4
1KT-85830-01-00
Control Unit Assy
|
1KT-85830-01-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
7
|
7
1KT-82310-50-00 Ignition Coil Assy |
1KT-82310-50-00 |
US $203.10 |
||
| replacement | |||||
|
7
|
7
3LC-82310-01-00 Ignition Coil Assy |
3LC-82310-01-00 |
from US $203.10 |
||
|
8
|
8
98001-06050-00 Bolt |
98001-06050-00 |
US $2.55 |
||
| replacement | |||||
|
8
|
8
97027-06050-00 Bolt(3Hs) |
97027-06050-00 |
from US $2.55 |
||
|
9
|
9
1M1-82370-21-00 Plug Cap AssyWITH NOISE SUPPRESSOR |
1M1-82370-21-00 |
from US $28.34 |
||
| replacement | |||||
|
9
|
9
8DG-82370-00-00 Plug Cap AssyWITH NOISE SUPPRESSOR |
8DG-82370-00-00 |
from US $28.34 |
||
|
10
|
10
341-82540-01-00
Neutral Switch Assy
|
341-82540-01-00 |
— | ||
| replacements | |||||
|
10
|
10
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
10
|
10
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
11
|
11
341-82543-00-00
Gasket
|
341-82543-00-00 |
— | ||
| replacement | |||||
|
11
|
11
296-82543-00-00 Gasket |
296-82543-00-00 |
from US $2.69 |
||
|
12
|
12
11H-83591-00-00 Thermo Unit |
11H-83591-00-00 |
from US $90.36 |
||
|
13
|
13
2MY-82501-00-00
Main Switch Steering Lock
|
2MY-82501-00-00 |
— | ||
|
14
|
14
90149-06228-00 Screw |
90149-06228-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
90149-06308-00 Screw(4Hm) |
90149-06308-00 |
from US $1.81 |
||
|
15
|
15
1KT-83371-30-00 Horn |
1KT-83371-30-00 |
US $89.25 |
||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
97006-06010-00 Bolt |
97006-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
17
|
17
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
18
|
18
3A3-82566-00-00
Switch, Side Stand
|
3A3-82566-00-00 |
— | ||
| replacement | |||||
|
18
|
18
3A3-82566-10-00
Switch, Side Stand
|
3A3-82566-10-00 |
— | ||
|
19
|
19
90152-05021-00 Screw, Flat Head |
90152-05021-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
20
|
20
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
20
|
20
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
21
|
21
2ME-85110-00-00
Frt Reflector Assemblyassy
|
2ME-85110-00-00 |
— | ||
