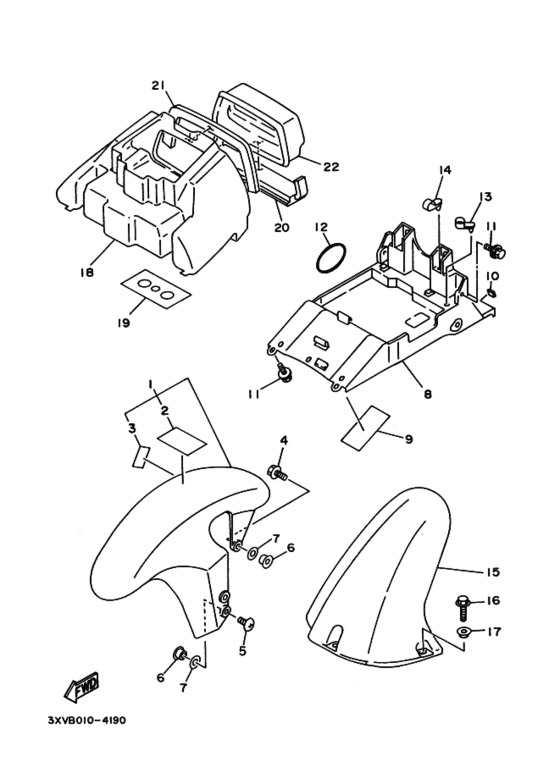

Fender Diagram Yamaha TZR250
- Year
- 1994
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 3XVB
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TZR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3XV-Y2151-02-P0
Front Fender Assy
フロントフエンダコンプリート; ビビツドレツドカクテル １ |
3XV-Y2151-02-P0 |
— | ||
|
2
|
2
1JK-21735-00-00 Seal 2．シール ２; |
1JK-21735-00-00 |
from US $6.52 |
||
|
3
|
3
2AL-84553-00-00 Damper．ダンパ; |
2AL-84553-00-00 |
from US $5.38 |
||
|
4
|
4
95811-06016-00 Bolt, Flange |
95811-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
5
|
5
90150-06031-00 Screw, Round Head |
90150-06031-00 |
US $1.98 |
||
| replacements | |||||
|
5
|
5
90150-06021-00 Screw, Round Head |
90150-06021-00 |
from US $2.22 |
||
|
5
|
5
901-50068-10-00 Screw, round head |
901-50068-10-00 |
US $2.22 |
||
|
6
|
6
90387-087L0-00 Collarカラー; |
90387-087L0-00 |
from US $3.54 |
||
|
7
|
7
4FM-28372-00-00 Damper |
4FM-28372-00-00 |
from US $2.98 |
||
|
8
|
8
3XV-21611-00-00
Fender, Rear
|
3XV-21611-00-00 |
— | ||
|
9
|
9
3XV-21649-00-00
Damper
|
3XV-21649-00-00 |
— | ||
|
10
|
10
3GM-23426-00-00
Damper
|
3GM-23426-00-00 |
— | ||
|
11
|
11
90119-06108-00 Bolt, With Washer |
90119-06108-00 |
from US $1.28 |
||
| replacement | |||||
|
11
|
11
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
12
|
12
93210-61750-00 O-Ring |
93210-61750-00 |
from US $1.66 |
||
|
13
|
13
90464-12027-00 Clamp |
90464-12027-00 |
from US $3.74 |
||
|
14
|
14
90464-12158-00
Clamp
|
90464-12158-00 |
— | ||
|
15
|
15
3XV-21650-10-00
Rear Fender Comp
リヤフエンダコンプリート; |
3XV-21650-10-00 |
— | ||
|
16
|
16
950-26060-16-00
Bolt, Flange
ボルト，フランジ; |
950-26060-16-00 |
— | ||
| replacement | |||||
|
16
|
16
901-05066-96-00 Bolt, Flangeボルト，フランジ; |
901-05066-96-00 |
from US $2.64 |
||
|
17
|
17
90387-062M9-00 Collarカラー; |
90387-062M9-00 |
from US $1.70 |
||
|
18
|
18
3XV-2160A-00-00
Box Comp
ボツクスコンプリート; |
3XV-2160A-00-00 |
— | ||
|
19
|
19
3XV-21639-00-00
Damper 2
|
3XV-21639-00-00 |
— | ||
|
20
|
20
3XV-2173N-00-00
Seal 4
シール ４; |
3XV-2173N-00-00 |
— | ||
|
21
|
21
3XV-21669-00-00
Seal
シール; |
3XV-21669-00-00 |
— | ||
|
22
|
22
3XV-2160F-00-00
Lid
|
3XV-2160F-00-00 |
— | ||
