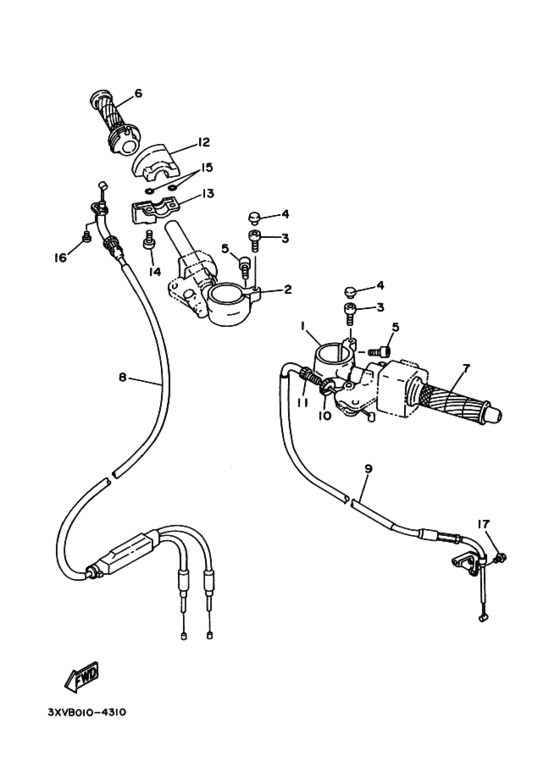

Steering handle & cable Diagram Yamaha TZR250
- Year
- 1994
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 3XVB
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TZR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3XV-26121-00-00
Handlebar (Left)
ハンドルバー ; レフト |
3XV-26121-00-00 |
— | ||
|
2
|
2
3XV-26122-01-00 Handlebar (Right)ハンドルバー ; ライト |
3XV-26122-01-00 |
US $186.45 |
||
|
3
|
3
90110-06138-00 Bolt |
90110-06138-00 |
from US $1.25 |
||
|
4
|
4
2H9-23469-00-00 Plug |
2H9-23469-00-00 |
from US $1.52 |
||
| replacement | |||||
|
4
|
4
903-38050-10-00 Plug |
903-38050-10-00 |
from US $1.39 |
||
|
5
|
5
91311-06025-00 Bolt, Hexagon Socket Head |
91311-06025-00 |
US $1.56 |
||
| replacement | |||||
|
5
|
5
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.66 |
||
|
6
|
6
3XV-26240-10-00
Grip Assy
|
3XV-26240-10-00 |
— | ||
|
7
|
7
4FM-26241-00-00 Gripグリツプ ; レフト |
4FM-26241-00-00 |
from US $31.23 |
||
| replacement | |||||
|
7
|
7
4FM-26241-01-00 Grip (Left)グリツプ ; レフト |
4FM-26241-01-00 |
from US $32.78 |
||
|
8
|
8
3XV-26302-60-00
Throttle Cable Assy
スロツトルケーブルアセンブリ; |
3XV-26302-60-00 |
— | ||
|
9
|
9
3XV-26335-00-00
Cable, clutch
ケーブル，クラツチ; |
3XV-26335-00-00 |
— | ||
|
10
|
10
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
10
|
10
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
11
|
11
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
11
|
11
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
12
|
12
3XV-26281-00-00 Cap, Grip Upper |
3XV-26281-00-00 |
US $35.69 |
||
|
13
|
13
3XV-26282-00-00
Cap, Grip Under
キヤツプ，グリツプロワー; |
3XV-26282-00-00 |
— | ||
|
14
|
14
98586-05016-00 Screw, Pan Head |
98586-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
14
|
14
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
15
|
15
93210-04092-00 O-Ring |
93210-04092-00 |
from US $1.70 |
||
|
16
|
16
985-06050-10-00
Screw, Pan Head
|
985-06050-10-00 |
— | ||
| replacement | |||||
|
16
|
16
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
17
|
17
95021-06014-00 Bolt, Flangeボルト，フランジ; |
95021-06014-00 |
from US $1.42 |
||
| replacements | |||||
|
17
|
17
950-22060-14-00 Bolt, Flangeボルト，フランジ; |
950-22060-14-00 |
from US $1.52 |
||
|
17
|
17
950-27060-14-00 Bolt, Flangeボルト，フランジ; |
950-27060-14-00 |
from US $1.42 |
||
