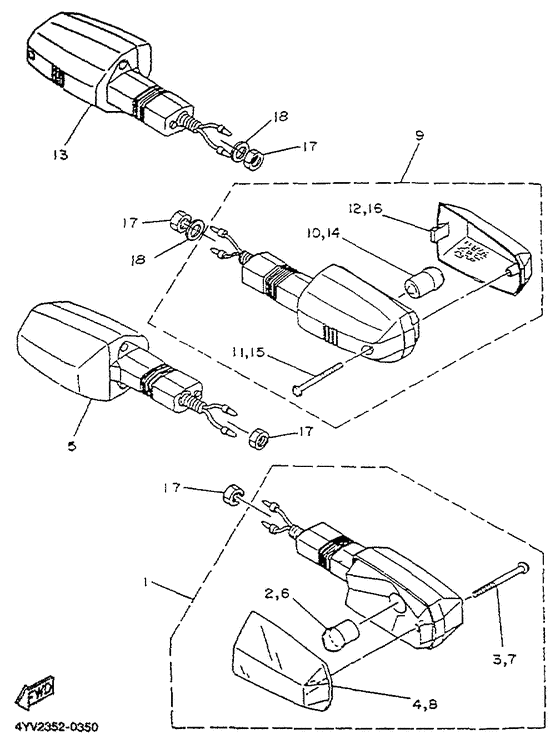

Intermitentes Diagram Yamaha TZR50
- Year
- 2000
- Model code
- 4YV2
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- TZR50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4BA-H3310-00-00
Front Flasher Light Assy 1
|
4BA-H3310-00-00 |
— | ||
|
02
|
02
4BA-H3311-00-00
Bulb, Flasher
|
4BA-H3311-00-00 |
— | ||
|
03
|
03
4BA-H3333-00-00
Screw, Lens Fitting
|
4BA-H3333-00-00 |
— | ||
|
04
|
04
4BA-H3312-00-00
Lens, Flasher
|
4BA-H3312-00-00 |
— | ||
|
05
|
05
4BA-H3320-00-00
Front Flasher Light Assy 2
|
4BA-H3320-00-00 |
— | ||
|
06
|
06
4BA-H3311-00-00
Bulb, Flasher
|
4BA-H3311-00-00 |
— | ||
|
07
|
07
4BA-H3333-00-00
Screw, Lens Fitting
|
4BA-H3333-00-00 |
— | ||
|
08
|
08
4BA-H3312-00-00
Lens, Flasher
|
4BA-H3312-00-00 |
— | ||
|
10
|
10
4BA-H3311-00-00
Bulb, Flasher
|
4BA-H3311-00-00 |
— | ||
|
11
|
11
4BA-H3333-00-00
Screw, Lens Fitting
|
4BA-H3333-00-00 |
— | ||
|
12
|
12
4BA-H3312-00-00
Lens, Flasher
|
4BA-H3312-00-00 |
— | ||
|
14
|
14
4BA-H3311-00-00
Bulb, Flasher
|
4BA-H3311-00-00 |
— | ||
|
15
|
15
4BA-H3333-00-00
Screw, Lens Fitting
|
4BA-H3333-00-00 |
— | ||
|
16
|
16
4BA-H3312-00-00
Lens, Flasher
|
4BA-H3312-00-00 |
— | ||
|
17
|
17
9530M-12700-00
Nut, Hex.,
|
9530M-12700-00 |
— | ||
|
18
|
18
90201-12814-00
Washer, Plate
|
90201-12814-00 |
— |
