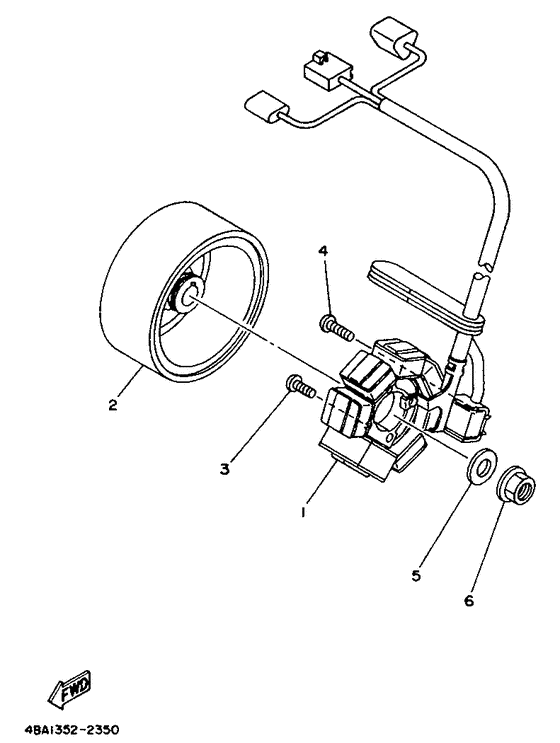

Generator Diagram Yamaha TZR80
- Year
- 1992
- Colour
- White (WW; 0036)
- Model code
- 4BA1
- Sales region
- Spain (999)
- Engine Capacity
- 80
- Model
- TZR80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4BA-85510-00-00
Stator Assy
|
4BA-85510-00-00 |
— | ||
|
02
|
02
4BA-85550-00-00
Rotor Assy
|
4BA-85550-00-00 |
— | ||
| replacement | |||||
|
02
|
02
4BA-85550-01-00
Rotor Assy
|
4BA-85550-01-00 |
— | ||
|
03
|
03
98501-05020-00 Screw, Pan Head |
98501-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
03
|
03
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
04
|
04
98501-06016-00 Screw, Pan Head |
98501-06016-00 |
US $2.55 |
||
| replacement | |||||
|
04
|
04
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
05
|
05
90201-12699-00 Washer, Plate |
90201-12699-00 |
from US $2.08 |
||
|
06
|
06
90179-12248-00 Nut |
90179-12248-00 |
from US $4.34 |
||
| replacement | |||||
|
06
|
06
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
