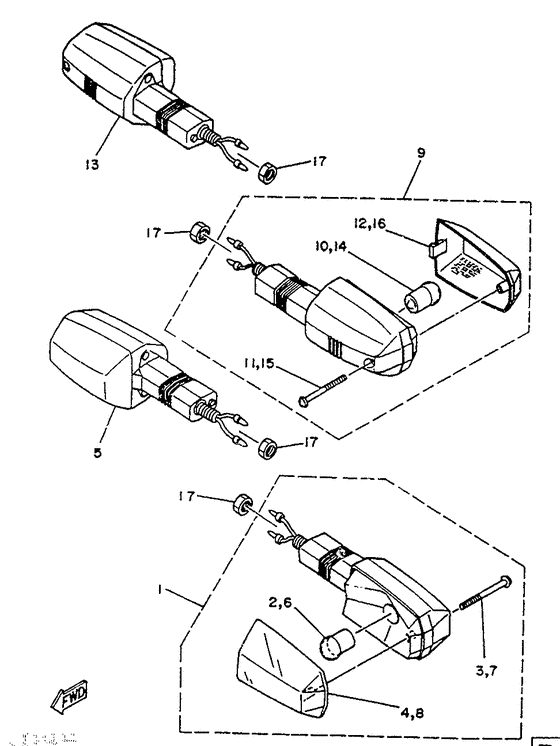

Intermitentes Diagram Yamaha TZR80
- Year
- 1992
- Colour
- White (WW; 0036)
- Model code
- 4BA1
- Sales region
- Spain (999)
- Engine Capacity
- 80
- Model
- TZR80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3YG-H3310-00-00
Front Flasher Light Assy 1
|
3YG-H3310-00-00 |
— | ||
|
02
|
02
3YG-H3311-00-00
Bulb, Flasher
|
3YG-H3311-00-00 |
— | ||
|
03
|
03
3YG-H3333-00-00
Screw, Lens Fitting
|
3YG-H3333-00-00 |
— | ||
|
04
|
04
3YG-H3312-00-00
Lens, Flasher
|
3YG-H3312-00-00 |
— | ||
|
05
|
05
3YG-H3320-00-00
Front Flasher Light Assy 2
|
3YG-H3320-00-00 |
— | ||
|
06
|
06
3YG-H3311-00-00
Bulb, Flasher
|
3YG-H3311-00-00 |
— | ||
|
07
|
07
3YG-H3333-00-00
Screw, Lens Fitting
|
3YG-H3333-00-00 |
— | ||
|
08
|
08
3YG-H3312-00-00
Lens, Flasher
|
3YG-H3312-00-00 |
— | ||
|
09
|
09
3YG-H3330-00-00
Rear Flasher Light Assy 1
|
3YG-H3330-00-00 |
— | ||
|
10
|
10
3YG-H3311-00-00
Bulb, Flasher
|
3YG-H3311-00-00 |
— | ||
|
11
|
11
3YG-H3333-00-00
Screw, Lens Fitting
|
3YG-H3333-00-00 |
— | ||
|
12
|
12
3YG-H3312-00-00
Lens, Flasher
|
3YG-H3312-00-00 |
— | ||
|
13
|
13
3YG-H3340-00-00
Rear Flasher Light Assy 2
|
3YG-H3340-00-00 |
— | ||
|
14
|
14
3YG-H3311-00-00
Bulb, Flasher
|
3YG-H3311-00-00 |
— | ||
|
15
|
15
3YG-H3333-00-00
Screw, Lens Fitting
|
3YG-H3333-00-00 |
— | ||
|
16
|
16
3YG-H3312-00-00
Lens, Flasher
|
3YG-H3312-00-00 |
— | ||
|
17
|
17
95306-12700-00 Nut |
95306-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
17
|
17
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.36 |
||
