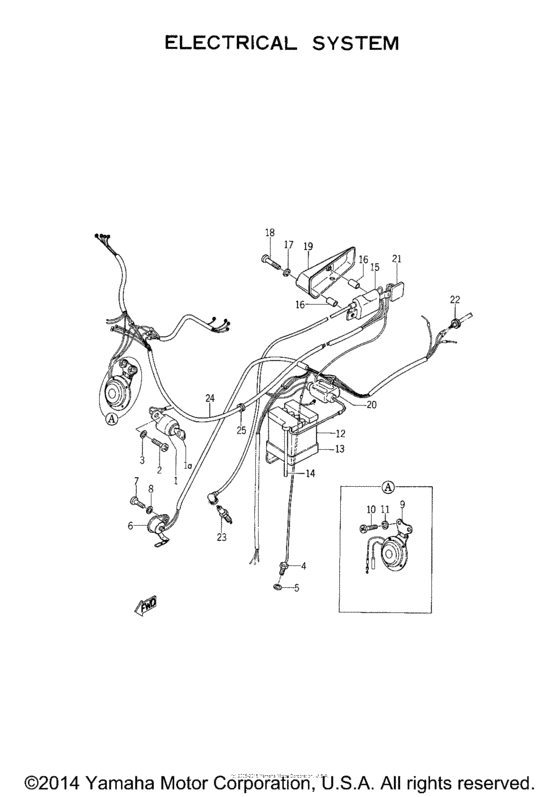

Electrical Diagram Yamaha U5/ U7
- Year
- 1966
- Sales region
- USA
- Engine Capacity
- 500
- Model
- U5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
116-82510-20-00
Main Switch Asy
|
116-82510-20-00 |
— | ||
| replacement | |||||
|
1
|
1
116-82508-20-00
MAIN SWITCH ASY
|
116-82508-20-00 |
— | ||
|
1
|
1
116-82511-70-00
Key, Main Switch
|
116-82511-70-00 |
— | ||
|
2
|
2
92501-06100-00 Screw, Pan Head |
92501-06100-00 |
from US $1.98 |
||
| replacement | |||||
|
2
|
2
98507-06100-00 Screw, Pan Head |
98507-06100-00 |
from US $1.98 |
||
|
3
|
3
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
116-82540-00-00
Neutral Switch Assembly
|
116-82540-00-00 |
— | ||
|
5
|
5
116-82543-00-00 Gasket |
116-82543-00-00 |
from US $2.69 |
||
| replacement | |||||
|
5
|
5
296-82543-00-00 Gasket |
296-82543-00-00 |
from US $2.69 |
||
|
6
|
6
122-82530-00-00 Stopswitchassy |
122-82530-00-00 |
from US $23.07 |
||
| replacement | |||||
|
6
|
6
122-82530-02-00
Stop Switch Assy
|
122-82530-02-00 |
— | ||
|
7
|
7
925-01050-10-00 Screw, Pan Head |
925-01050-10-00 |
US $1.21 |
||
| replacements | |||||
|
7
|
7
925-03050-12-00 Screw, Pan Head |
925-03050-12-00 |
US $0.88 |
||
|
7
|
7
925-03050-10-00 Screw, pan |
925-03050-10-00 |
US $0.88 |
||
|
8
|
8
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
9
|
9
116-83371-10-00
Horn
|
116-83371-10-00 |
— | ||
| replacement | |||||
|
9
|
9
116-83371-12-00
HORN
|
116-83371-12-00 |
— | ||
|
10
|
10
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
11
|
11
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
116-82110-11-00
Battery Assy
|
116-82110-11-00 |
— | ||
| replacement | |||||
|
12
|
12
6N2-2A300-00-00
BULK PREMIER II CABL
|
6N2-2A300-00-00 |
— | ||
|
13
|
13
116-82122-00-00
Seat, Battery
|
116-82122-00-00 |
— | ||
|
14
|
14
116-82112-00-00 Hose |
116-82112-00-00 |
US $5.10 |
||
| replacement | |||||
|
14
|
14
904-45086-84-00 Hose (L340) |
904-45086-84-00 |
from US $5.42 |
||
|
15
|
15
102-82310-70-00
Ignition Coil Assembly
|
102-82310-70-00 |
— | ||
|
16
|
16
116-82313-00-00
Collar
|
116-82313-00-00 |
— | ||
| replacement | |||||
|
16
|
16
903-87050-15-00
COLLAR
|
903-87050-15-00 |
— | ||
|
17
|
17
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
18
|
18
925-01050-40-00
Screw
|
925-01050-40-00 |
— | ||
|
19
|
19
116-82310-41-00
Ignition Coil Asy
|
116-82310-41-00 |
— | ||
| replacement | |||||
|
19
|
19
116-82315-41-00
IGNITION COIL ASY
|
116-82315-41-00 |
— | ||
|
20
|
20
116-82150-00-00 Fuse Holder Assy |
116-82150-00-00 |
US $11.33 |
||
| replacements | |||||
|
20
|
20
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
|
20
|
20
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
21
|
21
120-81970-40-00
Rectifier Assy
|
120-81970-40-00 |
— | ||
|
22
|
22
152-84518-00-00 Grommet |
152-84518-00-00 |
US $1.84 |
||
| replacement | |||||
|
22
|
22
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.94 |
||
|
23
|
23
B7H-S0000-00-00 Ngk Spark Plug B7HsB7HS B-7HS |
B7H-S0000-00-00 |
US $26.28 |
||
|
24
|
24
116-82590-21-00
Wire, Harness Assy
|
116-82590-21-00 |
— | ||
|
25
|
25
102-82596-00-00
Grommet
|
102-82596-00-00 |
— | ||
| replacement | |||||
|
25
|
25
102-82598-00-00
Grommet
|
102-82598-00-00 |
— | ||
