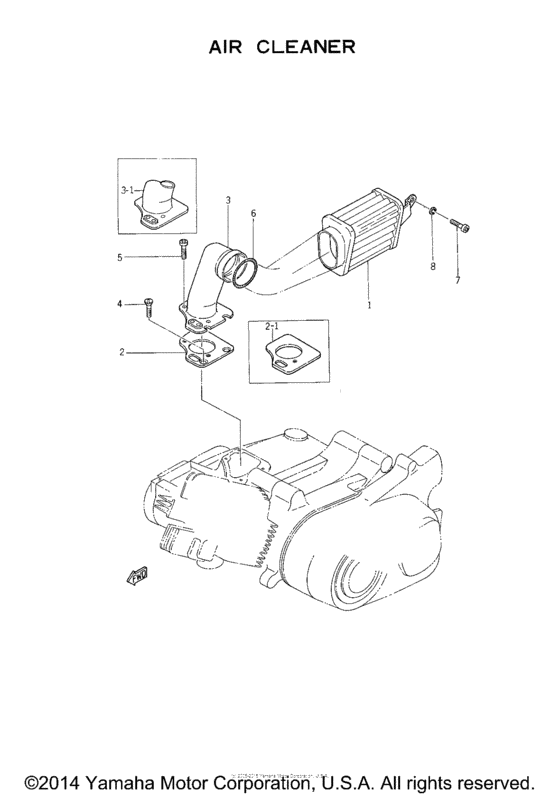

Air cleaner Diagram Yamaha U5/ U7
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 500
- Model
- U5
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
116-14451-00-00
Element, Air Clnr
U5 |
116-14451-00-00 |
— | ||
|
1
|
1
118-14451-00-00
Element, Air Clnr
U5E |
118-14451-00-00 |
— | ||
| replacement | |||||
|
1
|
1
118-14451-01-00
ELEMENT,AIR CLNR
U5E |
118-14451-01-00 |
— | ||
|
2
|
2
117-14417-00-00
Cover 1
|
117-14417-00-00 |
— | ||
| replacement | |||||
|
2
|
2
117-14417-02-00
COVER 1
|
117-14417-02-00 |
— | ||
|
3
|
3
117-14453-00-00
Joint,air Clnr 1
|
117-14453-00-00 |
— | ||
| replacement | |||||
|
3
|
3
117-14453-02-00
JOINT,AIR CLNR 1
|
117-14453-02-00 |
— | ||
|
4
|
4
927-01040-10-00 Screw, Flat Head |
927-01040-10-00 |
from US $1.70 |
||
| replacement | |||||
|
4
|
4
98707-04010-00 Screw, Flat Head |
98707-04010-00 |
from US $1.70 |
||
|
5
|
5
92501-04008-00 Screw, Pan Head |
92501-04008-00 |
US $1.07 |
||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
116-14455-00-00
Spring,tension
|
116-14455-00-00 |
— | ||
| replacement | |||||
|
6
|
6
905-06060-87-00
SPRING,TENSION
|
905-06060-87-00 |
— | ||
|
7
|
7
92501-06010-00 Screw, Pan Head92503-06010-00 |
92501-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
8
|
8
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
