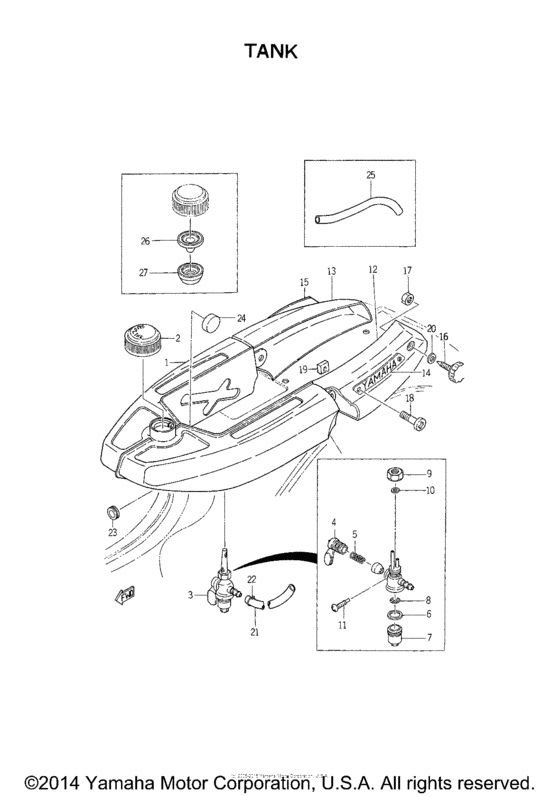

Fuel tank Diagram Yamaha U5/ U7
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 500
- Model
- U5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
116-24110-00-00
Fuel Tank Comp
|
116-24110-00-00 |
— | ||
|
2
|
2
116-24610-01-00
Cap Assy
|
116-24610-01-00 |
— | ||
|
3
|
3
116-24500-00-00
Fuel Cock Asy 1
|
116-24500-00-00 |
— | ||
| replacement | |||||
|
3
|
3
116-24500-01-00
FUEL COCK ASY 1
|
116-24500-01-00 |
— | ||
|
4
|
4
122-24524-00-00
Lever, Cock
|
122-24524-00-00 |
— | ||
|
5
|
5
102-24529-00-00
Spring, Compression
|
102-24529-00-00 |
— | ||
| replacement | |||||
|
5
|
5
905-01070-29-00
Spring, Compression
|
905-01070-29-00 |
— | ||
|
6
|
6
102-24522-00-00 Gasket |
102-24522-00-00 |
US $5.24 |
||
| replacements | |||||
|
6
|
6
102-24522-01-00 Gasket |
102-24522-01-00 |
from US $5.24 |
||
|
6
|
6
102-24522-02-00 Gasket |
102-24522-02-00 |
US $7.88 |
||
|
7
|
7
122-24521-00-00
Cup, Filter
|
122-24521-00-00 |
— | ||
|
8
|
8
116-24515-00-00
Net, Filter
|
116-24515-00-00 |
— | ||
|
9
|
9
122-24531-00-00
Nut
3-17 |
122-24531-00-00 |
— | ||
|
10
|
10
122-24532-00-00 Gasket |
122-24532-00-00 |
from US $5.67 |
||
|
11
|
11
122-24535-00-00
Screw, Lvr Fitting
|
122-24535-00-00 |
— | ||
|
12
|
12
116-21731-00-00
Cover, Side 3
|
116-21731-00-00 |
— | ||
|
13
|
13
116-21741-00-00
Cover, Side 4
|
116-21741-00-00 |
— | ||
|
14
|
14
116-21784-00-00
Emblem, Side Cover Lh
LH |
116-21784-00-00 |
— | ||
|
15
|
15
116-21785-00-00
Emblem, Side Cover Rh
RH |
116-21785-00-00 |
— | ||
|
16
|
16
116-21714-00-00
Knob, Side Cover
|
116-21714-00-00 |
— | ||
|
18
|
18
925-01040-12-00
Screw, Pan Head
|
925-01040-12-00 |
— | ||
| replacement | |||||
|
18
|
18
925-03040-12-00 Screw, Pan Head |
925-03040-12-00 |
US $1.28 |
||
|
19
|
19
116-21791-00-00
Nut
|
116-21791-00-00 |
— | ||
| replacement | |||||
|
19
|
19
116-21791-01-00
NUT
|
116-21791-01-00 |
— | ||
|
20
|
20
122-21725-00-00 Washer, Plate (122-21725-00)122-21725-00 |
122-21725-00-00 |
from US $3.40 |
||
| replacement | |||||
|
20
|
20
90202-07015-00 Washer, Plate (122-21725-00)122-21725-00 |
90202-07015-00 |
from US $3.74 |
||
|
21
|
21
116-24311-00-00 Hose (L675) |
116-24311-00-00 |
US $19.84 |
||
| replacement | |||||
|
21
|
21
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
22
|
22
101-24356-00-00 ClipClip,pipe |
101-24356-00-00 |
from US $1.70 |
||
| replacement | |||||
|
22
|
22
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
23
|
23
116-24339-00-00
Grommet
|
116-24339-00-00 |
— | ||
|
24
|
24
122-24181-00-00 Damper, Locating 1 |
122-24181-00-00 |
from US $3.51 |
||
|
25
|
25
116-24318-00-00
Tube, Overflow
|
116-24318-00-00 |
— | ||
|
26
|
26
116-24627-00-00
Packing, Valve
|
116-24627-00-00 |
— | ||
|
27
|
27
116-24612-00-00
Packing, Cap
|
116-24612-00-00 |
— | ||
