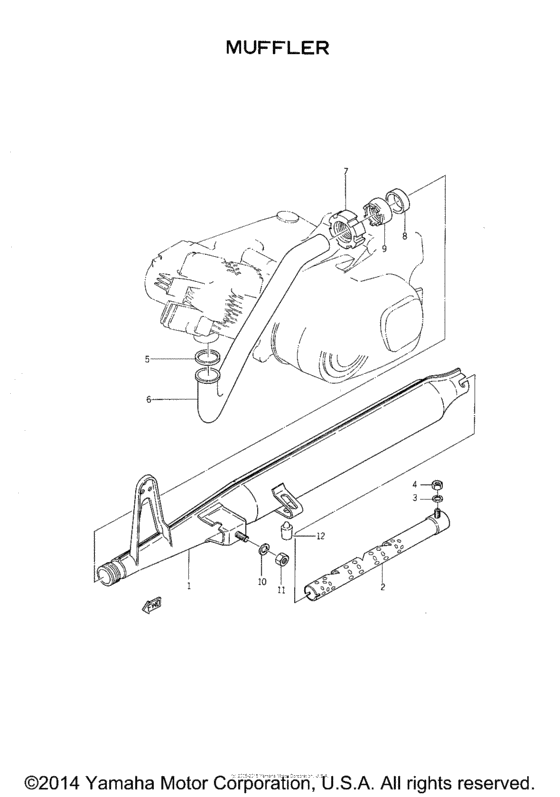

Muffler Diagram Yamaha U5/ U7
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 500
- Model
- U5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
116-14710-01-00
Muffler Assy
|
116-14710-01-00 |
— | ||
| replacement | |||||
|
1
|
1
116-14710-03-00
MUFFLER ASY L
|
116-14710-03-00 |
— | ||
|
2
|
2
116-14753-00-00
Silencer
|
116-14753-00-00 |
— | ||
|
3
|
3
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
3
|
3
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
4
|
4
928-01051-00-00 Nut |
928-01051-00-00 |
US $2.20 |
||
| replacement | |||||
|
4
|
4
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.65 |
||
|
5
|
5
109-14613-01-00
Gasket, Exst Pipe
|
109-14613-01-00 |
— | ||
|
6
|
6
116-14611-00-00
Pipe,exhaust L
|
116-14611-00-00 |
— | ||
| replacement | |||||
|
6
|
6
116-14611-01-00
PIPE,EXHAUST L
|
116-14611-01-00 |
— | ||
|
7
|
7
109-14612-00-00
Nut, Ring
|
109-14612-00-00 |
— | ||
| replacement | |||||
|
7
|
7
109-14612-02-00
Nut, Ring
|
109-14612-02-00 |
— | ||
|
8
|
8
109-14714-01-00
Gasket, Muffler
|
109-14714-01-00 |
— | ||
|
9
|
9
109-14713-00-00 Nut, Muffler Joint |
109-14713-00-00 |
US $22.24 |
||
|
10
|
10
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
11
|
11
928-01081-00-00 Nut |
928-01081-00-00 |
US $1.42 |
||
| replacements | |||||
|
11
|
11
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
11
|
11
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
12
|
12
116-27114-00-00 Stopper, Min Stand |
116-27114-00-00 |
from US $2.70 |
||
