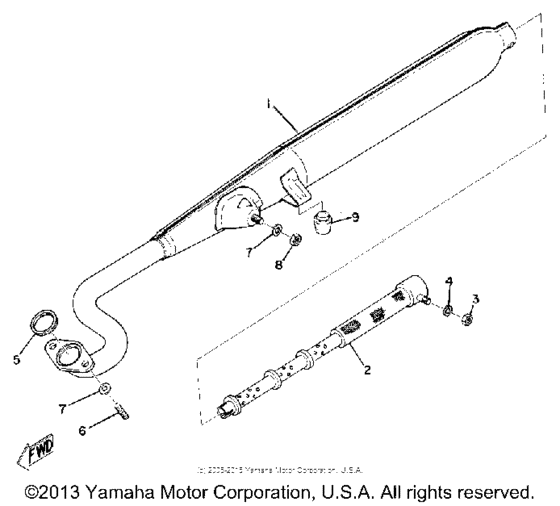

Exhaust Diagram Yamaha U5/ U7
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 700
- Model
- U7
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
298-14710-01-00
Muffler Assembly L
|
298-14710-01-00 |
— | ||
|
2
|
2
298-14753-01-00
Silencer, Exhaust
|
298-14753-01-00 |
— | ||
|
3
|
3
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
4
|
4
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
5
|
5
132-14613-00-00
Gasket, Exst Pipe
|
132-14613-00-00 |
— | ||
| replacement | |||||
|
5
|
5
3MT-14613-00-00 Gasket, Exst Pipe |
3MT-14613-00-00 |
from US $4.99 |
||
|
6
|
6
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
6
|
6
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
6
|
6
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
7
|
7
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
8
|
8
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
8
|
8
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
9
|
9
116-27114-00-00 Stopper, Min Stand |
116-27114-00-00 |
from US $2.70 |
||
