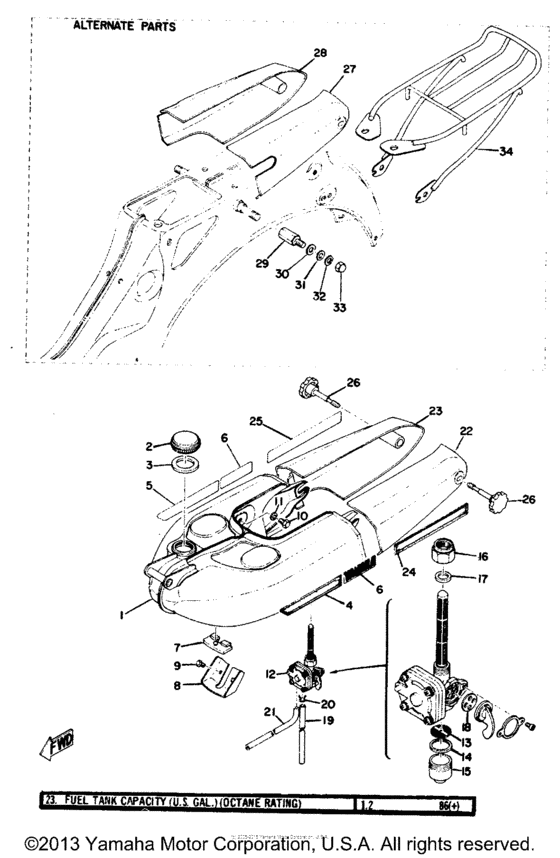

Fuel tank Diagram Yamaha U5/ U7
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 700
- Model
- U7
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
296-24110-01-71
Fuel Tank
|
296-24110-01-71 |
— | ||
|
2
|
2
22F-24610-10-00 Cap Assembly |
22F-24610-10-00 |
from US $18.70 |
||
|
3
|
3
296-24612-00-00 Packing, Cap |
296-24612-00-00 |
from US $9.63 |
||
| replacement | |||||
|
3
|
3
3T5-24612-20-00 Packing, Cap |
3T5-24612-20-00 |
from US $7.64 |
||
|
4
|
4
296-24161-10-00
Emblem 1
|
296-24161-10-00 |
— | ||
|
5
|
5
296-24162-10-00
Emblem 2
|
296-24162-10-00 |
— | ||
|
6
|
6
296-24163-00-00
Emblem 3
|
296-24163-00-00 |
— | ||
|
7
|
7
296-24181-00-00 Damper, Locating 1 |
296-24181-00-00 |
US $7.37 |
||
|
8
|
8
296-21345-00-00
Bracket, Tank Ftng
|
296-21345-00-00 |
— | ||
|
9
|
9
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
9
|
9
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
10
|
10
901-01080-18-00 Bolt |
901-01080-18-00 |
US $3.54 |
||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
12
|
12
296-24500-00-00
Fuel Cock Assembly 1
|
296-24500-00-00 |
— | ||
|
13
|
13
266-24515-00-00
Net, Filter 2
|
266-24515-00-00 |
— | ||
|
14
|
14
266-24522-00-00 Gasket |
266-24522-00-00 |
from US $5.24 |
||
|
15
|
15
266-24521-01-00
Cup, Filter
|
266-24521-01-00 |
— | ||
|
16
|
16
266-24531-01-00
Nut
|
266-24531-01-00 |
— | ||
|
17
|
17
266-24532-00-00
Gasket
|
266-24532-00-00 |
— | ||
|
18
|
18
266-24523-00-00 Valve |
266-24523-00-00 |
from US $12.47 |
||
|
19
|
19
904-45091-15-00
Hose (L460)
|
904-45091-15-00 |
— | ||
| replacement | |||||
|
19
|
19
90445-083J5-00 Hose (L460) |
90445-083J5-00 |
from US $3.72 |
||
|
20
|
20
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
21
|
21
90445-07246-00 Hose |
90445-07246-00 |
US $10.91 |
||
| replacement | |||||
|
21
|
21
904-45072-G8-00 Hose (L310) |
904-45072-G8-00 |
from US $6.74 |
||
|
22
|
22
296-21731-21-71
Cover, Side 3
MANDARIN ORANGE |
296-21731-21-71 |
— | ||
|
23
|
23
296-21741-21-71
Cover, Side 4
MANDARIN ORANGE |
296-21741-21-71 |
— | ||
|
24
|
24
296-21784-10-00
Emblem 4
|
296-21784-10-00 |
— | ||
|
25
|
25
296-21785-10-00
Emblem 5
|
296-21785-10-00 |
— | ||
|
26
|
26
296-21714-00-00
Knob, Side Cover 1
|
296-21714-00-00 |
— | ||
|
27
|
27
296-21731-80-71
Cover, Side 3
MANDARIN ORANGEALTERNATE PARTS |
296-21731-80-71 |
— | ||
|
28
|
28
296-21741-80-71
Cover, Side 4
MANDARIN ORANGEALTERNATE PARTS |
296-21741-80-71 |
— | ||
|
29
|
29
901-09102-07-00
Bolt
|
901-09102-07-00 |
— | ||
|
30
|
30
902-01101-27-00
Washer, Plate
|
902-01101-27-00 |
— | ||
|
31
|
31
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
32
|
32
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
33
|
33
95303-10800-00 Nut |
95303-10800-00 |
US $3.12 |
||
| replacement | |||||
|
33
|
33
95380-10800-00 Nut |
95380-10800-00 |
from US $3.12 |
||
|
34
|
34
296-24830-00-00 Carrier U7EU7E ALTERNATE PARTS |
296-24830-00-00 |
US $82.76 |
||
