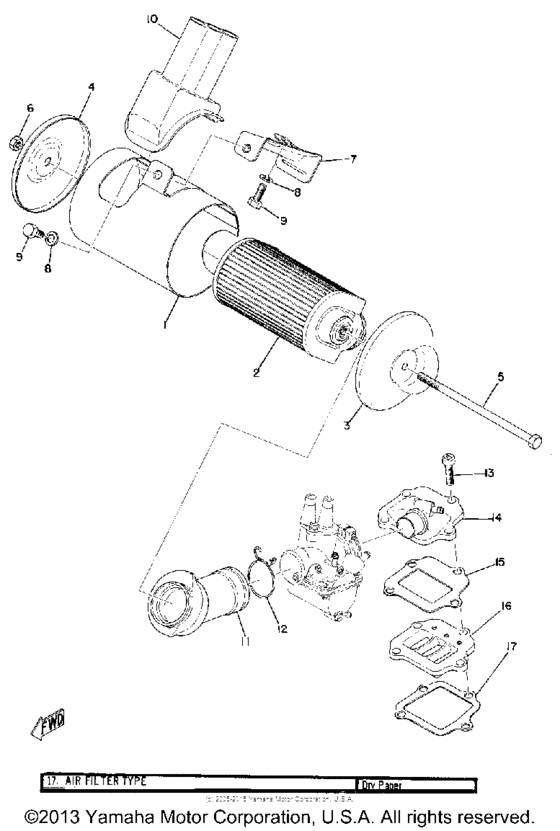

Intake Diagram Yamaha U5/ U7
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 700
- Model
- U7
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
296-14411-00-00
Case, Air Cleaner 1
|
296-14411-00-00 |
— | ||
|
2
|
2
296-14451-00-00
Element, Air Clnr
|
296-14451-00-00 |
— | ||
|
3
|
3
296-14422-00-00
Cap, Cleaner Case 2
|
296-14422-00-00 |
— | ||
|
4
|
4
296-14412-00-00
Cap, Cleaner Case 1
|
296-14412-00-00 |
— | ||
|
5
|
5
97301-06140-00
Bolt, Hexagon
|
97301-06140-00 |
— | ||
|
6
|
6
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
7
|
7
296-14413-00-00
Stay 1
|
296-14413-00-00 |
— | ||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
9
|
9
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
10
|
10
296-14454-00-00
Joint
|
296-14454-00-00 |
— | ||
|
11
|
11
298-14453-01-00
Joint, Air Clnr 1
|
298-14453-01-00 |
— | ||
|
12
|
12
90467-20023-00 Clip |
90467-20023-00 |
from US $1.70 |
||
|
13
|
13
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
13
|
13
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
14
|
14
296-13555-00-00 Manifold, Intake |
296-13555-00-00 |
US $73.09 |
||
|
15
|
15
296-13622-02-00 Gasket, Valve Seat |
296-13622-02-00 |
US $12.33 |
||
|
16
|
16
298-13610-00-00
Reed Valve Assembly
|
298-13610-00-00 |
— | ||
|
17
|
17
296-13621-00-00 Gasket, Valve Seat |
296-13621-00-00 |
US $9.78 |
||
