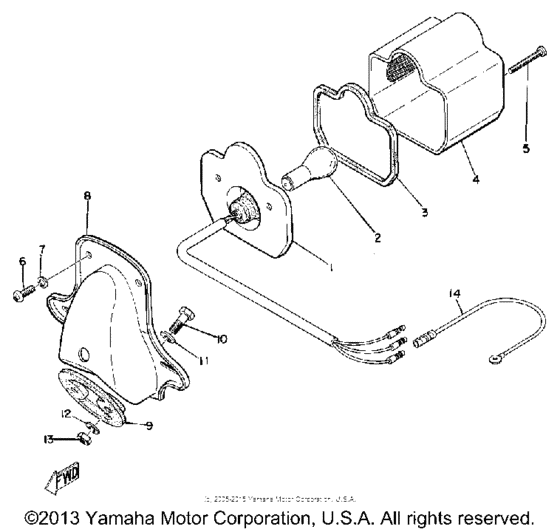

Tail lamp Diagram Yamaha U5/ U7
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 700
- Model
- U7
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
339-84710-60-00
Taillight Unit Assembly
|
339-84710-60-00 |
— | ||
|
1
|
1
339-84711-60-00
Base, Taillight
|
339-84711-60-00 |
— | ||
|
2
|
2
137-84714-61-00 Bulb (12V-21/5W)12V-21/5W |
137-84714-61-00 |
US $5.13 |
||
| replacement | |||||
|
2
|
2
137-84714-61-XX
Bulb (12V-21/5W)
12V-21/5W |
137-84714-61-XX |
— | ||
|
3
|
3
168-84712-60-00
Seat, Base
|
168-84712-60-00 |
— | ||
|
4
|
4
168-84721-60-00
Lens, Taillight
|
168-84721-60-00 |
— | ||
|
5
|
5
3AA-84331-00-00
Screw, Rim Adjusting
|
3AA-84331-00-00 |
— | ||
|
6
|
6
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010- |
985-80060-10-00 |
from US $1.42 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
904-80131-49-00
Grommet
|
904-80131-49-00 |
— | ||
|
10
|
10
90109-06018-00 Bolt |
90109-06018-00 |
from US $4.53 |
||
|
11
|
11
132-84754-60-00
Washer, Special
|
132-84754-60-00 |
— | ||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
14
|
14
117-84556-60-00
Wire, Earth Lead
|
117-84556-60-00 |
— | ||
