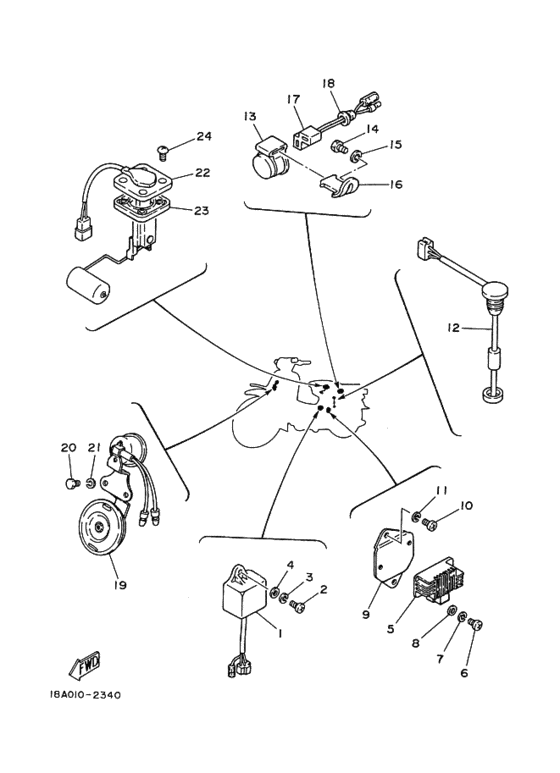

Electrical 2 Diagram Yamaha V80 Mate
- Year
- 1988
- Colour
- New High Sparkle Green (NHG; 00V9)
- Model code
- 18E0
- Sales region
- Japan (010)
- Engine Capacity
- 80
- Color Variant
- A
- Model
- V80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5G3-85540-M0-00 C.d.i. Unit Assy．．．ＣＤＩユニツトアセンブリ; |
5G3-85540-M0-00 |
from US $124.87 |
||
| replacement | |||||
|
1
|
1
3L4-85540-M1-00 Cdi Unit Assembly (5G3-85540-M0．．．ＣＤＩユニツトアセンブリ; |
3L4-85540-M1-00 |
from US $172.46 |
||
|
2
|
2
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
2
|
2
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
3
|
3
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
3
|
3
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.39 |
||
|
4
|
4
902-01061-A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
902-01061-A5-00 |
from US $2.08 |
||
|
4
|
4
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
5
|
5
18A-81960-60-00 Rectifier & Regulator Assyレクチフアイヤアンドレギユレータアセンブリ; ＵＲ |
18A-81960-60-00 |
US $138.02 |
||
|
5
|
5
18A-81960-90-00 Rectifier & Regulator Assyレクチフアイヤアンドレギユレータアセンブリ; ＵＲ |
18A-81960-90-00 |
US $138.02 |
||
|
6
|
6
98501-05012-00 Screw, Pan Head |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
6
|
6
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
6
|
6
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
7
|
7
929-01051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
8
|
8
929-01056-00-00
Washer
ワツシヤ，プレート; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
8
|
8
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
8
|
8
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.18 |
||
|
9
|
9
18A-81915-00-00
Plate, Regulator Fitting
プレート，レギユレータフイツテイング; |
18A-81915-00-00 |
— | ||
|
10
|
10
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
11
|
11
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
3E1-85720-00-00 Oil Level Gauge Assyオイルレベルゲージアセンブリ; |
3E1-85720-00-00 |
from US $48.22 |
||
| replacement | |||||
|
12
|
12
3E1-85720-15-00 Oil Level Gauge Assyオイルレベルゲージアセンブリ; |
3E1-85720-15-00 |
from US $48.22 |
||
|
13
|
13
5G3-83350-10-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
5G3-83350-10-00 |
US $65.76 |
||
|
14
|
14
97301-06012-00 Bolt |
97301-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
14
|
14
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
14
|
14
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
15
|
15
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
15
|
15
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
16
|
16
474-83352-00-00
Bracket, Flasher Relay 1
ブラケツト，フラツシヤリレー １; |
474-83352-00-00 |
— | ||
|
17
|
17
1W7-83355-00-00 Cord, Flasher Relayコード，フラツシヤリレー; |
1W7-83355-00-00 |
US $10.48 |
||
|
18
|
18
90480-12013-00 Grommet |
90480-12013-00 |
from US $2.22 |
||
|
19
|
19
18A-83371-10-00
Horn
ホーン; |
18A-83371-10-00 |
— | ||
|
20
|
20
97301-06012-00 Bolt |
97301-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
20
|
20
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
20
|
20
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
21
|
21
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
21
|
21
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
22
|
22
18A-85752-00-00
Sender Unit Assy, Fuel Meter
センダユニツトアセンブリ，フユエルメータ; |
18A-85752-00-00 |
— | ||
|
23
|
23
5G3-85753-00-00 Gasket, Sender Unit |
5G3-85753-00-00 |
from US $7.07 |
||
|
24
|
24
90154-05004-00 Screw, C.r. Binding (2T4) |
90154-05004-00 |
from US $1.70 |
||
| replacement | |||||
|
24
|
24
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
