Headlight Diagram Yamaha V80 V80IIID
- Year
- 1978
- Colour
- Mauve Silver (MVS; 00T3)
- Model code
- 3E5
- Sales region
- Japan (010)
- Engine Capacity
- 80
- Color Variant
- A
- Model
- V80
Difficulties in parts search?
Difficulties in parts search?

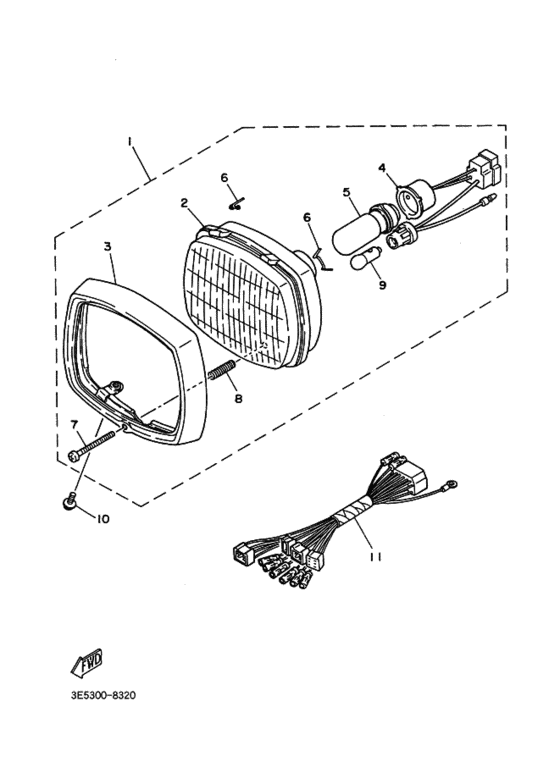

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3E1-84110-10-00 Headlight Unit Assy |
3E1-84110-10-00 |
US $107.76 |
||
|
2
|
2
3E1-84120-10-00 Lens Assy．レンズアセンブリ; |
3E1-84120-10-00 |
US $49.91 |
||
|
3
|
3
3E1-84115-10-00 Rim, Headlight．リム，ヘツドライト; |
3E1-84115-10-00 |
US $51.95 |
||
|
4
|
4
3E1-84112-10-00 Socket．ソケツト; |
3E1-84112-10-00 |
US $30.32 |
||
|
5
|
5
206-84114-60-00 Bulb (6V-25/25W)．バルブ; ６Ｖ−２５／２５Ｗ |
206-84114-60-00 |
from US $6.94 |
||
|
6
|
6
3E1-84124-10-00 Spring, Set．スプリング，セツト; |
3E1-84124-10-00 |
US $3.68 |
||
|
7
|
7
2E9-84131-00-00 Screw, Rim Adjuster．スクリユ，リムアジヤステイング; |
2E9-84131-00-00 |
US $2.13 |
||
| replacement | |||||
|
7
|
7
97780-40140-00 Ybs83-440 Screw,panh.tapping．スクリユ，リムアジヤステイング; |
97780-40140-00 |
US $2.13 |
||
|
8
|
8
2E9-84132-00-00 Spring, Screw．スプリング，スクリユ; |
2E9-84132-00-00 |
US $3.78 |
||
|
9
|
9
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S．バルブ; ６Ｖ／３Ｗ |
122-83516-10-00 |
US $3.54 |
||
| replacement | |||||
|
9
|
9
122-83516-10-XX
Bulb
．バルブ; ６Ｖ／３Ｗ |
122-83516-10-XX |
— | ||
|
10
|
10
90159-05028-00 Screw, With Washer |
90159-05028-00 |
from US $2.83 |
||
| replacement | |||||
|
10
|
10
90159-05121-00 Screw, With Washer |
90159-05121-00 |
from US $3.05 |
||
|
11
|
11
3E1-84159-00-00
Cord, Headlight
コード，ヘツドライト; |
3E1-84159-00-00 |
— | ||
